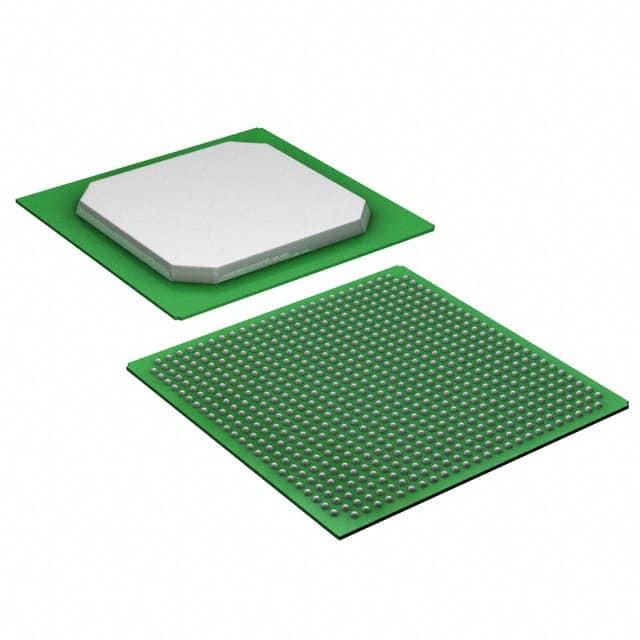

EP1S20B672C6

SKU: 115184

Manufacturer: Intel

FPGA Stratix® Family 18460 Cells 450.05MHz 130nm Technology 1.5V 672-Pin BGA

1800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	Stratix®
Process Technology	130nm
User I/Os	426
Number of I/O Banks	8
Operating Supply Voltage (V)	1.5
Shift Registers	Utilize Memory
Logic Elements	18460
Number of Multipliers	80 (9x9)
Program Memory Type	SRAM
Embedded Memory (Kbit)	1630.1
Total Number of Block RAM	2+82+194
IP Core	32/64-bit PCI-X bus Master/Target interface Core, 66/100/133Mhz
Provider Name	Microtronix Inc/CAST, Inc/Northwest Logic, Inc/IFI/Digital Core Design/PLDA
SERDES Channels	30
Device Logic Units	18460
Number of Global Clocks	16
Device Number of DLLs/PLLs	6
Dedicated DSP	10
Programmability	No
Reprogrammability Support	No
Copy Protection	Yes
Opr. Frequency (MHz)	450.05
In-System Programmability	Yes
Speed Grade	6
Differential I/O Standards	PCML
Single-Ended I/O Standards	LVTTL
Maximum I/O Performance	840Mbps
External Memory Interface	FCRAM
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
I/O Voltage (V)	1.5
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Stratix
Original Package	BGA
Pin Count	672
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	2.2(Max)
Package Length	35
Package Width	35
PCB changed	672
