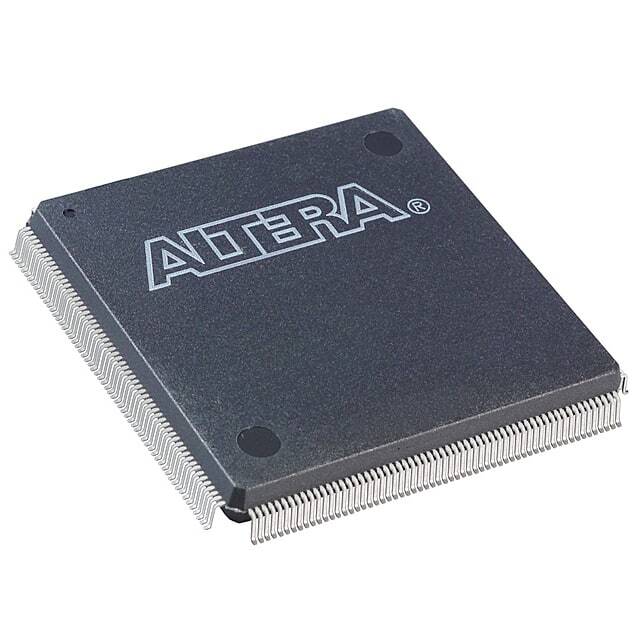

EP1C6Q240C8

SKU: 146084

Manufacturer: Intel

FPGA Cyclone® Family 5980 Cells 275.03MHz 130nm Technology 1.5V 240-Pin PQFP

230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
Automotive	No
PPAP	No
Family Name	Cyclone®
Process Technology	130nm
User I/Os	185
Number of I/O Banks	4
Operating Supply Voltage (V)	1.5
Shift Registers	Utilize Memory
Logic Elements	5980
Program Memory Type	SRAM
Embedded Memory (Kbit)	90
Total Number of Block RAM	20
IP Core	IFI Advanced CAN IP
Provider Name	Microtronix Inc/CAST, Inc/Northwest Logic, Inc/IFI
Device Logic Units	5980
Number of Global Clocks	8
Device Number of DLLs/PLLs	2
Programmability	No
Reprogrammability Support	No
Copy Protection	Yes
Opr. Frequency (MHz)	275.03
In-System Programmability	Yes
Speed Grade	8
Differential I/O Standards	PCI
Single-Ended I/O Standards	LVTTL
Maximum I/O Performance	640Mbps
External Memory Interface	FCRAM
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
I/O Voltage (V)	3.3
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Cyclone
Pin Count	240
Standard Package Method	QFP
Original Package	PQFP
Terminal Form	Surface Mount
Package Height	3.4
Package Length	32
Package Width	32
PCB changed	240
