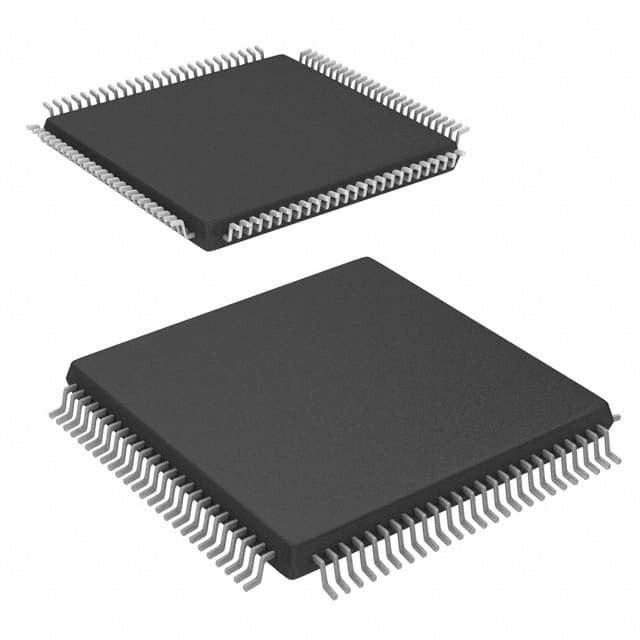

EP1C3T100C8

SKU: 18781

Manufacturer: Intel

FPGA Cyclone® Family 2910 Cells 275.03MHz 130nm Technology 1.5V 100-Pin TQFP

330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Cyclone®
Process Technology	130nm
User I/Os	65
Number of I/O Banks	4
Operating Supply Voltage (V)	1.5
Shift Registers	Utilize Memory
Logic Elements	2910
Program Memory Type	SRAM
Embedded Memory (Kbit)	58.5
Total Number of Block RAM	13
IP Core	Video LVDS SerDes Transmitter / Receiver
Provider Name	Microtronix Inc/CAST, Inc/Northwest Logic, Inc/IFI
Device Logic Units	2910
Number of Global Clocks	8
Device Number of DLLs/PLLs	1
Programmability	No
Reprogrammability Support	No
Copy Protection	Yes
Opr. Frequency (MHz)	275.03
In-System Programmability	Yes
Speed Grade	8
Differential I/O Standards	LVDS
Single-Ended I/O Standards	LVTTL
Maximum I/O Performance	640Mbps
External Memory Interface	DDR SDRAM
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
I/O Voltage (V)	1.5
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Cyclone
Pin Count	100
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1
Package Length	14
Package Width	14
PCB changed	100
