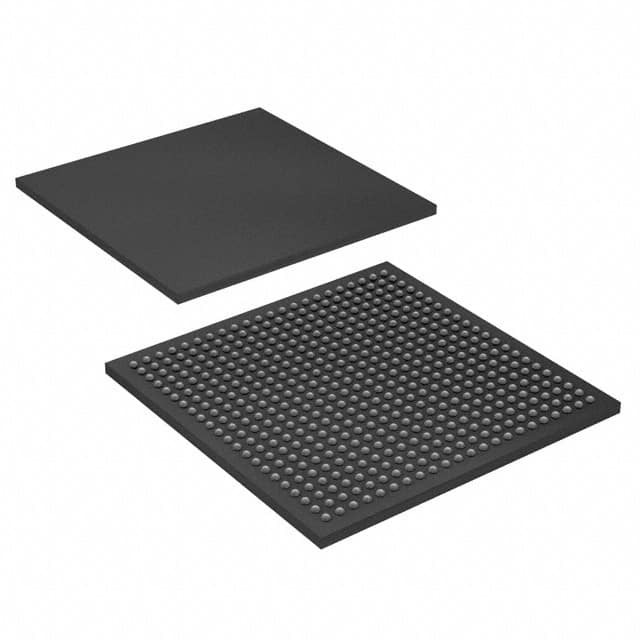

EP1AGX50CF484C6

SKU: 122301

Manufacturer: Intel

FPGA Arria® GX Family 50160 Cells 90nm Technology 1.2V 484-Pin FC-FBGA

3440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Family Name	Arria® GX
Process Technology	90nm
User I/Os	229
Number of I/O Banks	6
Operating Supply Voltage (V)	1.2
Shift Registers	Utilize Memory
Logic Elements	50160
Number of Multipliers	104 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	2417.1
Total Number of Block RAM	2+242+313
IP Core	10/100/1000Mbps Full Duplex Ethernet MAC
Provider Name	Microtronix Inc/Mobiveil, Inc/CAST, Inc/Barco Silex/MorethanIP
Device Logic Units	50160
Number of Global Clocks	16
Device Number of DLLs/PLLs	4
Transceiver Channels	4
Transceiver Speed (Gbps)	2.5
Dedicated DSP	26
Programmability	No
Reprogrammability Support	No
Copy Protection	Yes
In-System Programmability	Yes
Speed Grade	6
Differential I/O Standards	LVDS
Single-Ended I/O Standards	PCI
Maximum I/O Performance	2.5Gbps
External Memory Interface	DDR SDRAM
Operating Supply Voltage-Min (V)	1.15
Operating Supply Voltage-Max (V)	1.25
I/O Voltage (V)	1.2
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Arria
Original Package	FC-FBGA
Pin Count	484
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	3(Max)
Package Length	23
Package Width	23
PCB changed	484
