EN63A0QA

SKU: 157784

Manufacturer: Intel

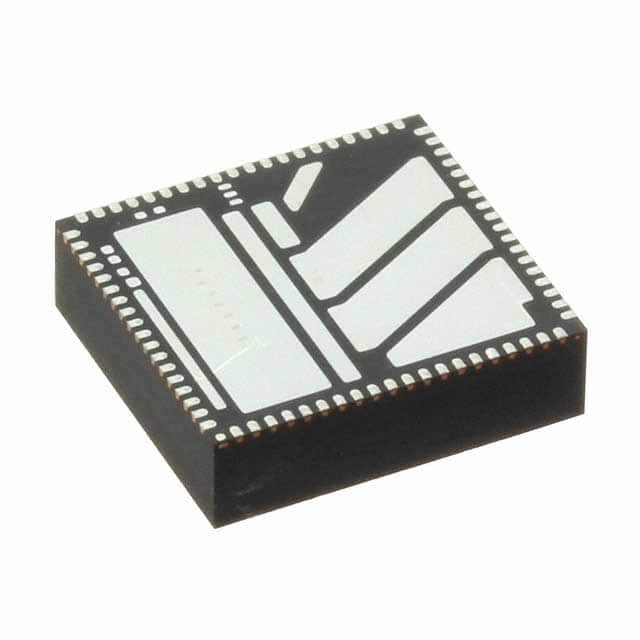

Conv DC-DC 2.5V to 6.6V Step Down Single-Out 0.6V to 5.4V 12A Automotive 76-Pin QFN EP Cut Tape

1670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Type	Step Down
Isolation	Non-Isolated
Output Type	Adjustable
Switching Frequency (kHz)	900 to 1500
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.6 to 5.4
Maximum Output Current (A)	12
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	6.6
Efficiency (%)	96
Maximum ESD Protection Voltage (kV)	0.5@CDM/2@HBM
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Cut Tape
Original Package	QFN EP
Pin Count	76
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	3
Package Length	11
Package Width	10
PCB changed	76
