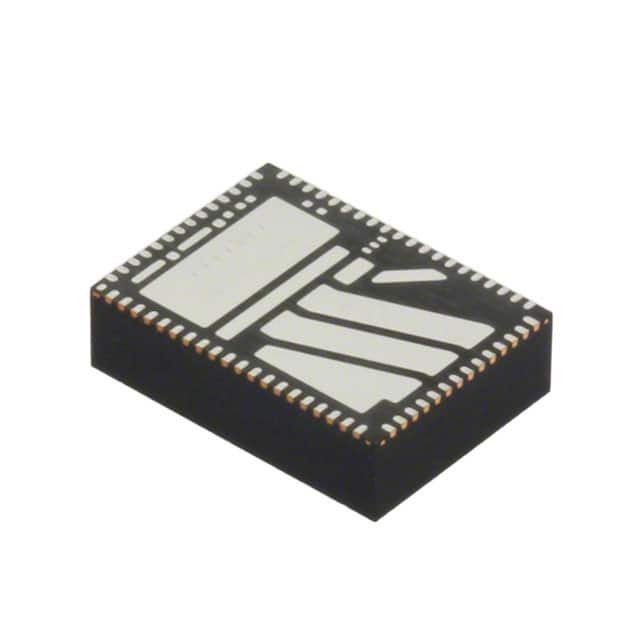

EN6360QI

SKU: 25784

Manufacturer: Intel

Conv DC-DC 2.5V to 6.6V Synchronous Step Down Single-Out 0.6V 8A 68-Pin QFN EP T/R

23390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Isolation	Non-Isolated
Output Type	Adjustable
Switching Frequency (kHz)	900 to 1500
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.6(Min)
Maximum Output Current (A)	8
Minimum Input Voltage (V)	2.5
Maximum Input Voltage (V)	6.6
Operating Supply Voltage (V)	2.5 to 6.6
Efficiency (%)	96
Maximum ESD Protection Voltage (kV)	2@HBM
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	68
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	3
Package Length	11
Package Width	8
PCB changed	68
