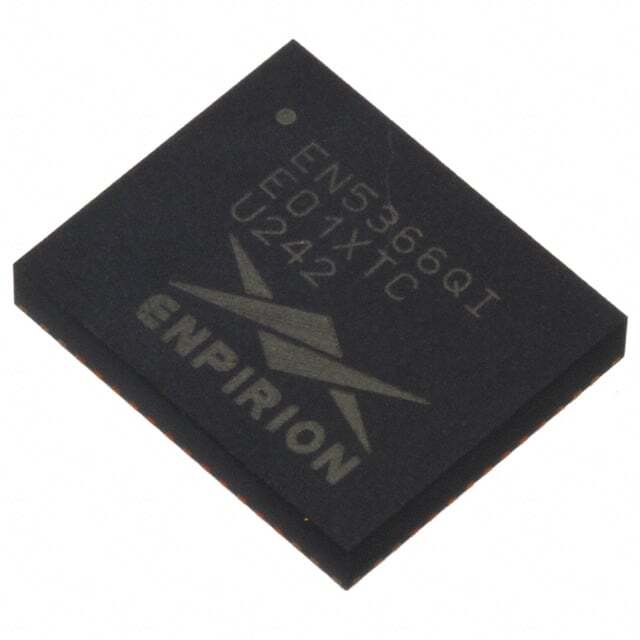

EN5366QI Intel

EN5366QI

SKU: 82330

Manufacturer: Intel

Conv DC-DC 2.375V to 5.5V Synchronous Step Down Single-Out 0.75V to 3.3V 6A 20W 58-Pin QFN EP Cut Tape

Download sample

Request Free Samples

5360 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Isolation	Non-Isolated
Output Type	Adjustable
Switching Frequency (kHz)	5000(Typ)
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.75 to 3.3
Maximum Output Current (A)	6(Min)
Maximum Output Power (W)	20
Minimum Input Voltage (V)	2.375
Maximum Input Voltage (V)	5.5
Operating Supply Voltage (V)	2.375 to 5.5
Efficiency (%)	93
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Cut Tape
Pin Count	58
Standard Package Method	QFN
Original Package	QFN EP
Terminal Form	Surface Mount
Package Height	1.85
Package Length	12
Package Width	10
PCB changed	58
