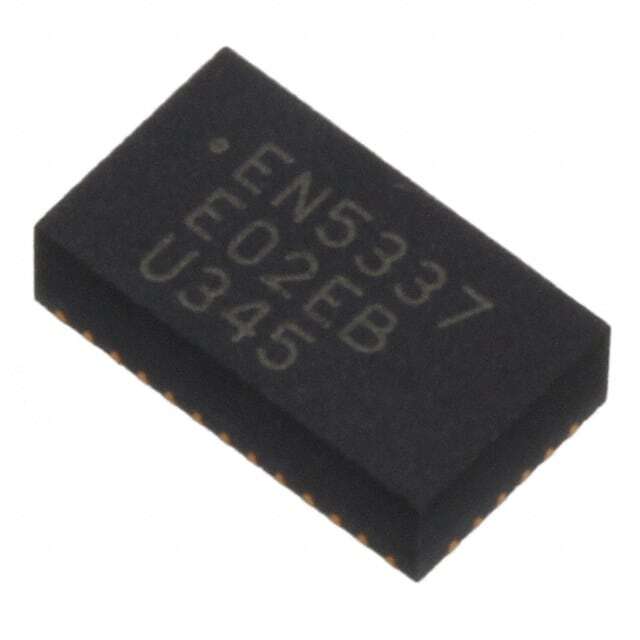

EN5337QI

SKU: 18777

Manufacturer: Intel

Conv DC-DC 2.375V to 5.5V Synchronous Step Down Single-Out 0.6V 3A 38-Pin QFN EP T/R

5400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Isolation	Non-Isolated
Output Type	Adjustable
Switching Frequency (kHz)	5000(Typ)
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.6(Min)
Maximum Output Current (A)	3
Minimum Input Voltage (V)	2.375
Maximum Input Voltage (V)	5.5
Operating Supply Voltage (V)	2.375 to 5.5
Line Regulation	0.02%/V(Typ)
Load Regulation	-0.03%/A(Typ)
Efficiency (%)	92
Maximum ESD Protection Voltage (kV)	0.5@CDM/2@HBM
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	38
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	1.85
Package Length	7
Package Width	4
PCB changed	38
