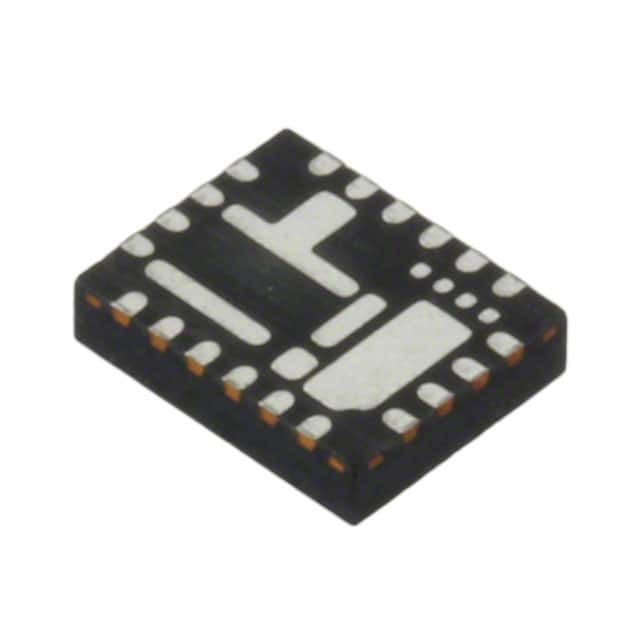

EN5311QI

SKU: 124799

Manufacturer: Intel

Conv DC-DC 2.4V to 5.5V Synchronous Step Down Single-Out 0.6V to 4.9V 1A 20-Pin QFN EP T/R

1760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	4000(Typ)
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.6 to 4.9
Maximum Output Current (A)	1
Minimum Input Voltage (V)	2.4
Maximum Input Voltage (V)	5.5
Operating Supply Voltage (V)	2.4 to 5.5
Typical Switch Current (A)	2
Typical Quiescent Current (uA)	800
Efficiency (%)	95
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	20
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	1.1
Package Length	5
Package Width	4
PCB changed	20
