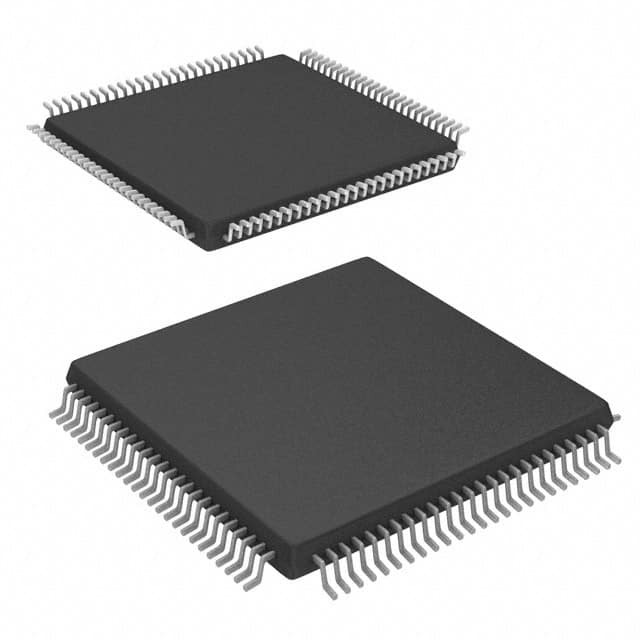

5M570ZT100A5N

SKU: 123413

Manufacturer: Intel

CPLD MAX® V Family 440 Macro Cells 118.3MHz 1.8V Automotive 100-Pin TQFP Tray

3960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Family Name	MAX® V
Logic Elements	570
Program Memory Type	FLASH
Memory Size (Kbit)	8
Number of Logic Blocks/Elements	8
Number of Global Clocks	4
Number of I/O Banks	2
Number of Macro Cells	440
Data Gate	No
Maximum Number of User I/Os	74
In-System Programmability	Yes
Programmability	Yes
Reprogrammability Support	Yes
Maximum Internal Frequency (MHz)	1474.9
Maximum Clock to Output Delay (ns)	8.7
Maximum Propagation Delay Time (ns)	17.7
Speed Grade	5
Individual Output Enable Control	Yes
Operating Supply Voltage-Min (V)	1.71
Operating Supply Voltage-Max (V)	1.89
Typical Operating Supply Voltage (V)	1.8
I/O Voltage (V)	3.3
Tolerant Configuration Interface Voltage (V)	5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tray
Tradename	MAX
Original Package	TQFP
Pin Count	100
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1
Package Length	14
Package Width	14
PCB changed	100
