5CGXFC7C6U19I7N

SKU: 123406

Manufacturer: Intel

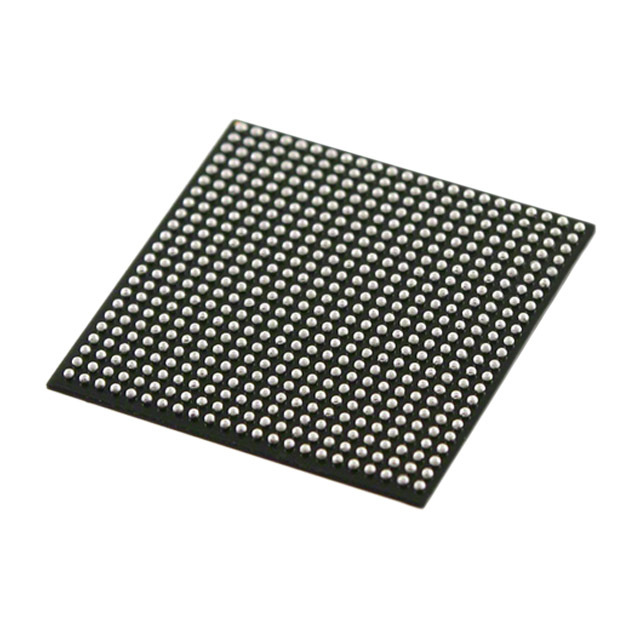

FPGA Cyclone® V GX Family 149500 Cells 28nm Technology 1.1V 484-Pin UFBGA

2470 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	Cyclone® V GX
Process Technology	28nm
User I/Os	240
Number of Registers	225920
Operating Supply Voltage (V)	1.1
Shift Registers	Utilize Memory
Logic Elements	149500
Number of Multipliers	312 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	6860
Total Number of Block RAM	686
EMACs	2
Device Logic Units	149500
Number of Global Clocks	16
Device Number of DLLs/PLLs	7
Transceiver Channels	9
JTAG Support	Yes
Transceiver Speed (Gbps)	3.125
Dedicated DSP	156
PCIe	2
Programmability	Yes
Reprogrammability Support	Yes
Copy Protection	No
In-System Programmability	Yes
Speed Grade	7
Differential I/O Standards	LVPECL
Single-Ended I/O Standards	LVTTL
External Memory Interface	DDR2 SDRAM
Operating Supply Voltage-Min (V)	1.07
Operating Supply Voltage-Max (V)	1.13
I/O Voltage (V)	1.5
Operating Temperature-Min	-40
Operating Temperature-Max	100
Supplier Temperature Grade	Industrial
Tradename	Cyclone
Original Package	UFBGA
Pin Count	484
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.35
Package Length	19
Package Width	19
PCB changed	484
