5CEFA5F23C6N

SKU: 144659

Manufacturer: Intel

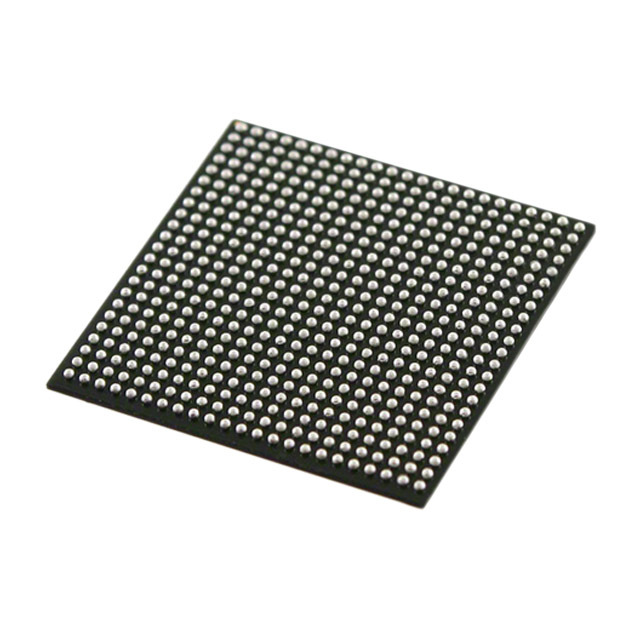

FPGA Cyclone® V E Family 77000 Cells 28nm Technology 1.1V 484-Pin FBGA

2280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991
Part Status	Active
Automotive	No
PPAP	No
Family Name	Cyclone® V E
Process Technology	28nm
User I/Os	272
Number of Registers	116320
Operating Supply Voltage (V)	1.1
Shift Registers	Utilize Memory
Logic Elements	77000
Number of Multipliers	300 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	4460
Total Number of Block RAM	446
EMACs	2
Device Logic Units	77000
Number of Global Clocks	16
Device Number of DLLs/PLLs	6
JTAG Support	Yes
Dedicated DSP	150
Programmability	Yes
Reprogrammability Support	Yes
Copy Protection	No
In-System Programmability	Yes
Speed Grade	6
Differential I/O Standards	LVDS
Single-Ended I/O Standards	LVCMOS
External Memory Interface	DDR2 SDRAM
Operating Supply Voltage-Min (V)	1.07
Operating Supply Voltage-Max (V)	1.13
I/O Voltage (V)	1.8
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Cyclone
Original Package	FBGA
Pin Count	484
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.35
Package Length	23
Package Width	23
PCB changed	484
