5CEBA9F23C8N

SKU: 151798

Manufacturer: Intel

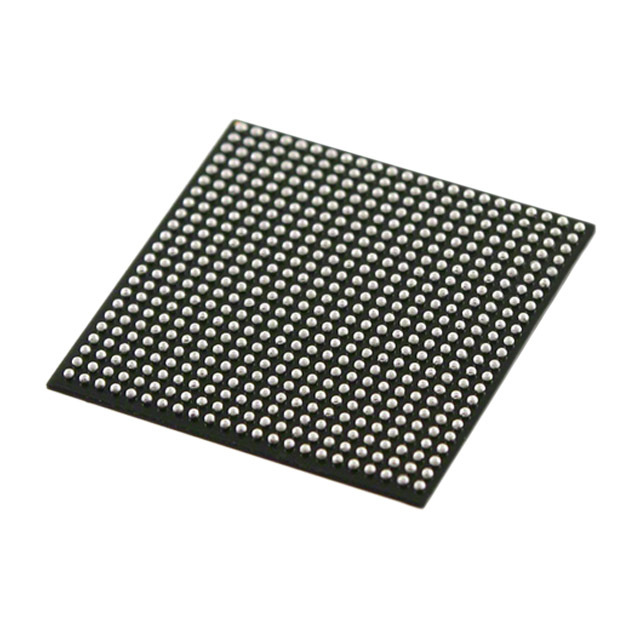

FPGA Cyclone® V E Family 301000 Cells 28nm Technology 1.1V 484-Pin FBGA

180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991
Part Status	Active
Automotive	No
PPAP	No
Family Name	Cyclone® V E
Process Technology	28nm
User I/Os	224
Number of Registers	454240
Operating Supply Voltage (V)	1.1
Shift Registers	Utilize Memory
Logic Elements	301000
Number of Multipliers	684 (18x18)
Program Memory Type	SRAM
Embedded Memory (Kbit)	12200
Total Number of Block RAM	1220
EMACs	2
Device Logic Units	301000
Number of Global Clocks	16
Device Number of DLLs/PLLs	8
JTAG Support	Yes
Dedicated DSP	342
Programmability	Yes
Reprogrammability Support	Yes
Copy Protection	No
In-System Programmability	Yes
Speed Grade	8
Differential I/O Standards	LVDS
Single-Ended I/O Standards	LVTTL
Maximum I/O Performance	5Gbps
External Memory Interface	LPDDR2
Operating Supply Voltage-Min (V)	1.07
Operating Supply Voltage-Max (V)	1.13
I/O Voltage (V)	1.2
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Tradename	Cyclone
Original Package	FBGA
Pin Count	484
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.35
Package Length	23
Package Width	23
PCB changed	484
