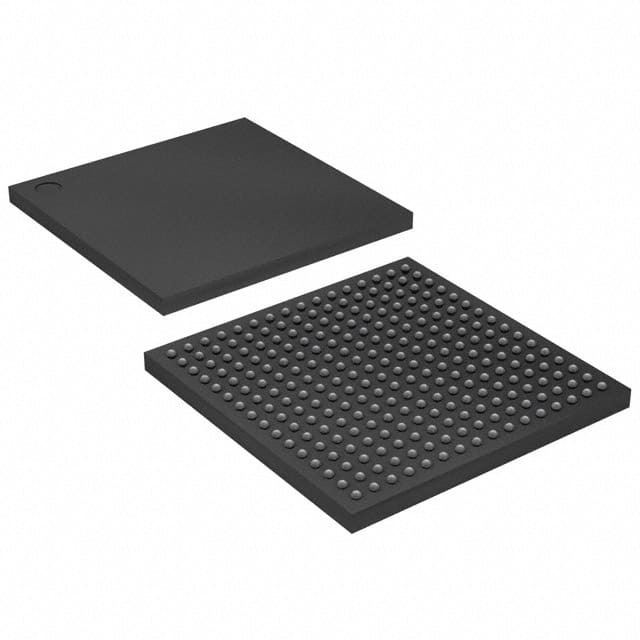

    10M25DCF256I7G

    SKU: 9096
    Manufacturer: Intel
    FPGA MAX 10 Family 25000 Cells 55nm Technology 1.2V 256-Pin FBGA
    200 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.39.00.01
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive No
    PPAP No
    Family Name MAX 10
    Process Technology 55nm
    User I/Os 178
    Operating Supply Voltage (V) 1.2
    Shift Registers Utilize Memory
    Logic Elements 25000
    Number of Multipliers 55 (18x18)
    Program Memory Type SRAM
    Embedded Memory (Kbit) 675
    Device Logic Units 25000
    Number of Global Clocks 20
    Device Number of DLLs/PLLs 4
    Programmability Yes
    Reprogrammability Support Yes
    Copy Protection No
    In-System Programmability Yes
    Speed Grade 7
    Differential I/O Standards LVDS
    External Memory Interface DDR2 SDRAM
    Operating Supply Voltage-Min (V) 1.15
    Operating Supply Voltage-Max (V) 1.25
    I/O Voltage (V) 1.2
    Operating Temperature-Min -40
    Operating Temperature-Max 100
    Supplier Temperature Grade Industrial
    Original Package FBGA
    Pin Count 256
    Standard Package Method BGA
    Terminal Form Surface Mount
    Package Height 1.05
    Package Length 17
    Package Width 17
    PCB changed 256
