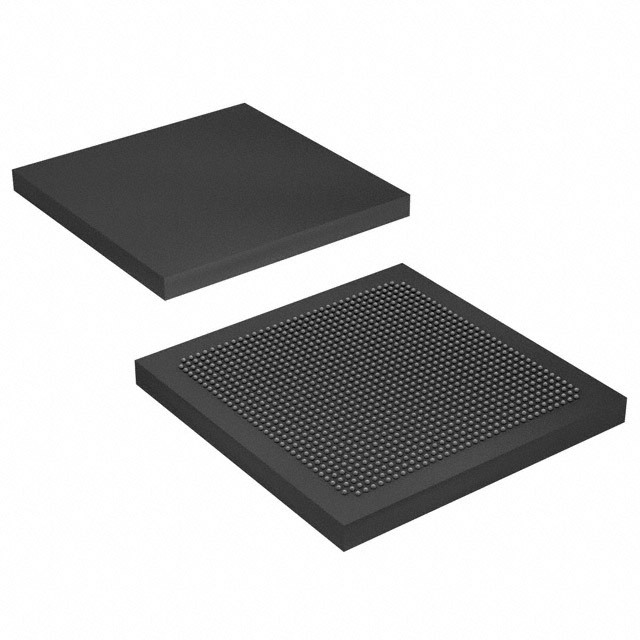

10AS066H3F34E2SG

SKU: 7142

Manufacturer: Intel

FPGA Arria® 10 SX Family 660000 Cells 20nm Technology 0.9V 1152-Pin FC-FBGA Tray

2030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001.a.7.b
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	Arria® 10 SX
Process Technology	20nm
User I/Os	492
Number of Registers	1002160
Operating Supply Voltage (V)	0.9
Logic Elements	660000
Number of Multipliers	3356 (18x19)
Program Memory Type	SRAM
Embedded Memory (Kbit)	42660
Total Number of Block RAM	2133
Device Logic Units	660000
Device Number of DLLs/PLLs	16
Transceiver Channels	24
Transceiver Speed (Gbps)	17.4
Dedicated DSP	1678
PCIe	2
Programmability	Yes
Reprogrammability Support	Yes
Copy Protection	Yes
In-System Programmability	Yes
Speed Grade	2
Operating Supply Voltage-Min (V)	0.87
Operating Supply Voltage-Max (V)	0.93
I/O Voltage (V)	1.2
Operating Temperature-Min	0
Operating Temperature-Max	100
Supplier Temperature Grade	Extended
Packing Method	Tray
Tradename	Arria
Original Package	FC-FBGA
Pin Count	1152
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	2.63
Package Length	35
Package Width	35
PCB changed	1152
