IS66WVE4M16TBLL-70BLI

SKU: 11984

Manufacturer: Integrated Silicon Solution Inc

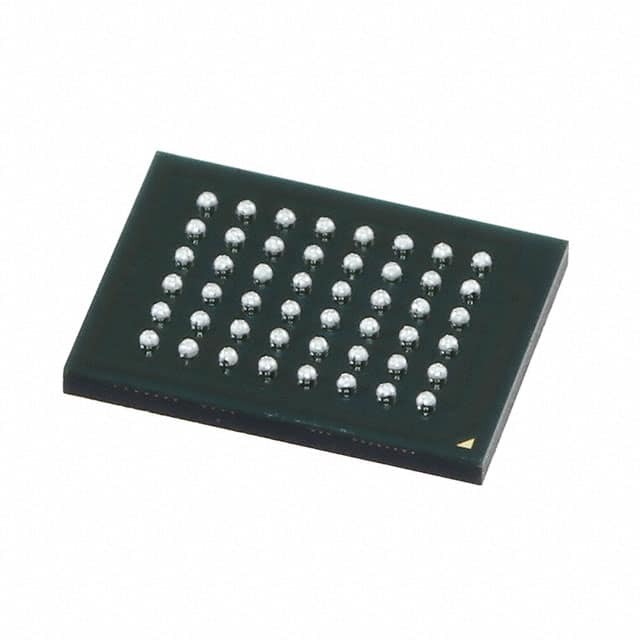

PSRAM Async Single Port 64M-bit 4M x 16 70ns 48-Pin TFBGA

2980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.b.2.a
Part Status	Active
HTS	8542.32.00.41
Automotive	No
PPAP	No
Chip Density (bit)	64M
Number of Words	4M
Number of Bits/Word (bit)	16
Address Bus Width (bit)	22
Number of Ports	1
Timing Type	Asynchronous
Maximum Access Time (ns)	70
Process Technology	CMOS
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3
Operating Supply Voltage-Max (V)	3.6
Maximum Operating Supply Current (mA)	30
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Original Package	TFBGA
Pin Count	48
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	8
Package Width	6
