IS66WVE2M16EALL-70BLI

SKU: 143680

Manufacturer: Integrated Silicon Solution Inc

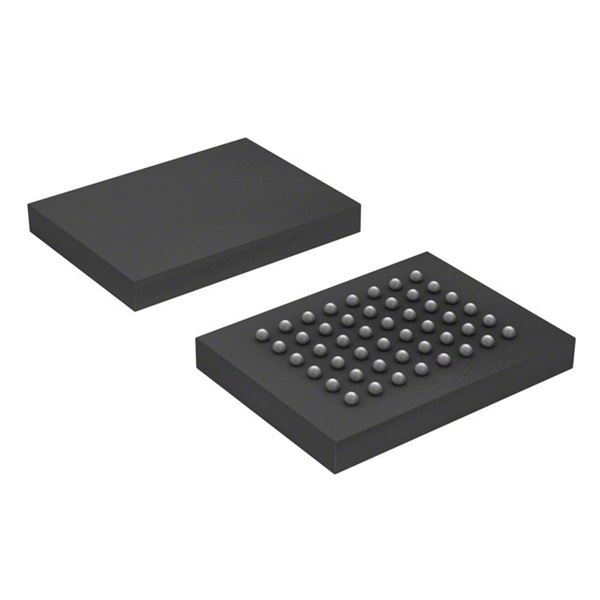

PSRAM Async Single Port 32M-bit 2M x 16 70ns 48-Pin TFBGA

1600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.32.00.02
Automotive	No
PPAP	No
Chip Density (bit)	32M
Number of Words	2M
Number of Bits/Word (bit)	16
Address Bus Width (bit)	21
Number of Ports	1
Timing Type	Asynchronous
Maximum Access Time (ns)	70
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.95
Maximum Operating Supply Current (mA)	30
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Original Package	TFBGA
Pin Count	48
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.9(Max)
Package Length	8
Package Width	6
PCB changed	48
