IS66WVC4M16EALL-7010BLI

SKU: 37564

Manufacturer: Integrated Silicon Solution Inc

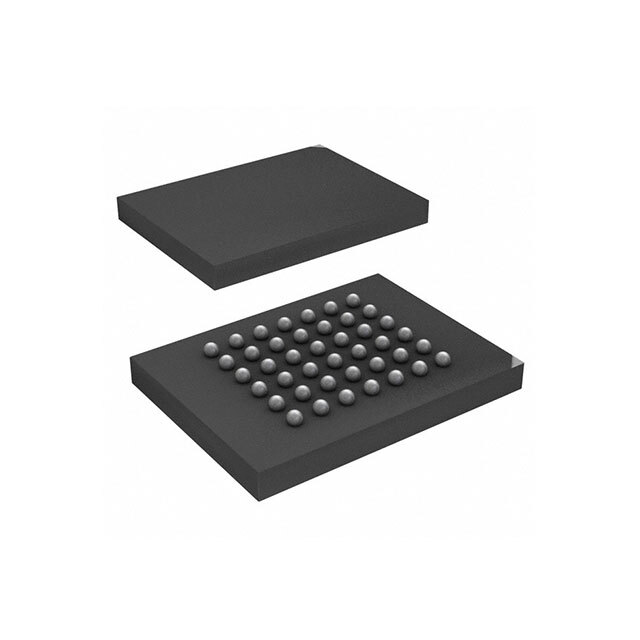

PSRAM Async Single Port 64M-bit 4M x 16 70ns 54-Pin VFBGA

1520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.32.00.41
Automotive	No
PPAP	No
Chip Density (bit)	64M
Number of Words	4M
Number of Bits/Word (bit)	16
Address Bus Width (bit)	22
Number of Ports	1
Timing Type	Asynchronous
Maximum Access Time (ns)	70
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.95
Maximum Operating Supply Current (mA)	35
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Original Package	VFBGA
Pin Count	54
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.7(Max)
Package Length	8
Package Width	6
PCB changed	54
