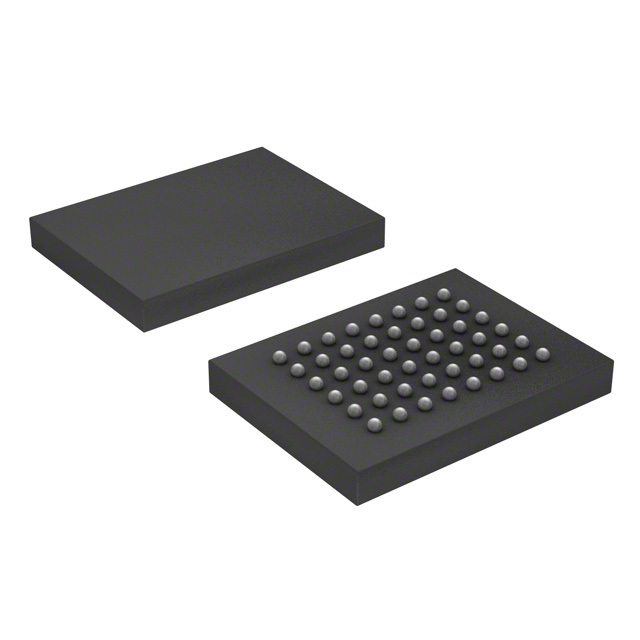

IS64WV6416BLL-15BA3

SKU: 30455

Manufacturer: Integrated Silicon Solution Inc

SRAM Chip Async Single 3.3V 1M-bit 64K x 16 15ns Automotive 48-Pin Mini-BGA

850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Yes
PPAP	Yes
Chip Density (bit)	1M
Number of Words	64K
Number of Bits/Word (bit)	16
Data Rate Architecture	SDR
Address Bus Width (bit)	16
Number of Ports	1
Timing Type	Asynchronous
Max. Access Time (ns)	15
Process Technology	CMOS
Operating Supply Voltage-Min (V)	2.5
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Current (mA)	50
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Original Package	Mini-BGA
Pin Count	48
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.6(Min)
Package Length	8
Package Width	6
PCB changed	48
