IS63LV1024L-10HL

SKU: 11982

Manufacturer: Integrated Silicon Solution Inc

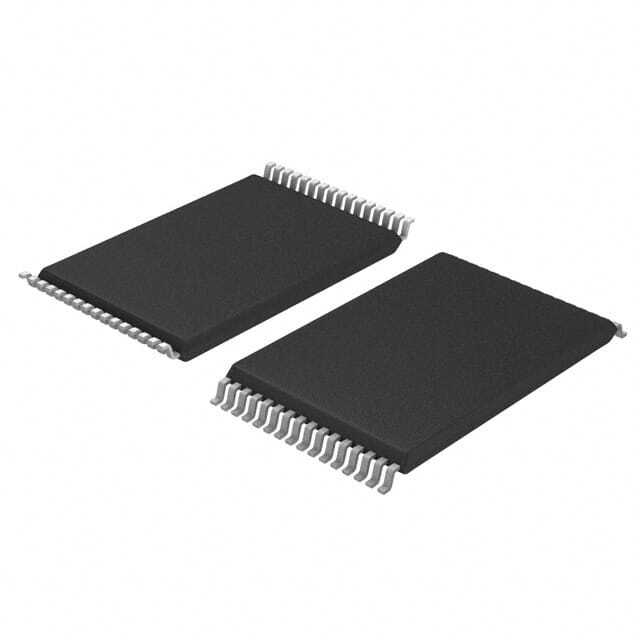

SRAM Chip Async Single 3.3V 1M-bit 128K x 8 10ns 32-Pin STSOP-I

30 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991b.2.b.
Part Status	Active
HTS	8542.32.00.41
Automotive	No
PPAP	No
Chip Density (bit)	1M
Number of Words	128K
Number of Bits/Word (bit)	8
Data Rate Architecture	SDR
Address Bus Width (bit)	17
Number of Ports	1
Timing Type	Asynchronous
Max. Access Time (ns)	10
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Current (mA)	150
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Original Package	STSOP-I
Pin Count	32
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	8.1(Max)
Package Width	11.9(Max)
PCB changed	32
