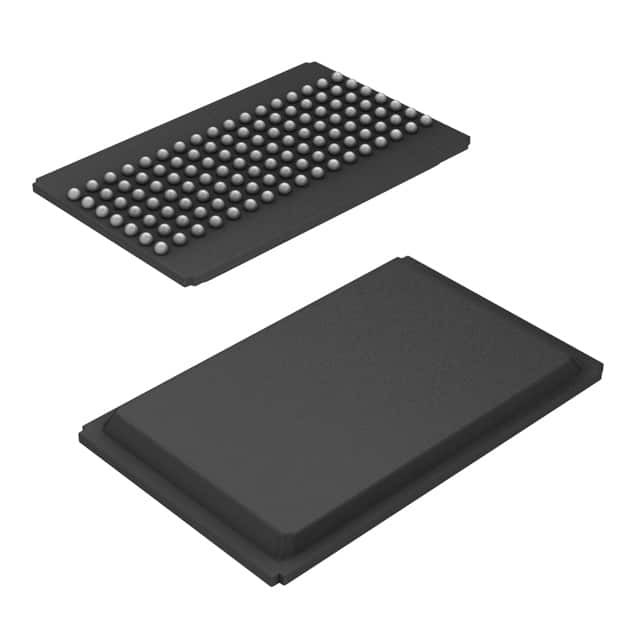

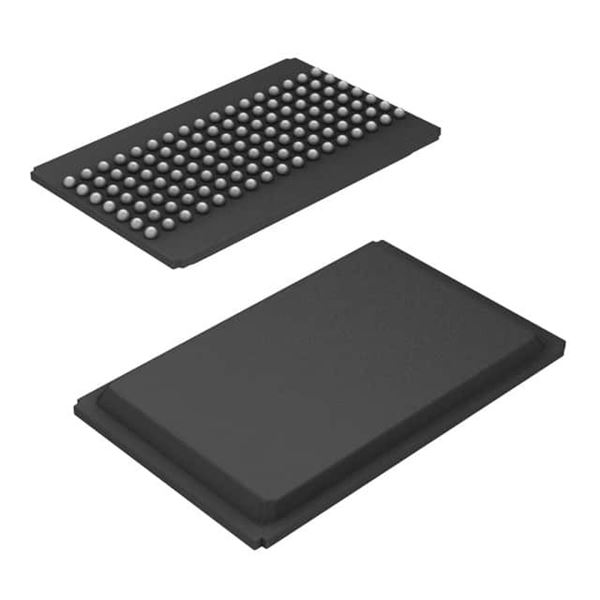

IS61LV12824-10BL

SKU: 125206

Manufacturer: Integrated Silicon Solution Inc

SRAM Chip Async Single 3.3V 3M-bit 128K x 24-bit 10ns 119-Pin BGA

2280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991
Part Status	Active
HTS	8542.32.00.41
Automotive	No
PPAP	No
Chip Density (bit)	3M
Number of Words	128K
Number of Bits/Word (bit)	24
Data Rate Architecture	SDR
Address Bus Width (bit)	17
Number of Ports	1
Timing Type	Asynchronous
Max. Access Time (ns)	10
Process Technology	CMOS
Operating Supply Voltage-Min (V)	2.97
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.63
Operating Current (mA)	180
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Original Package	BGA
Pin Count	119
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.7(Max)
Package Length	22.2(Max)
Package Width	14.2(Max)
PCB changed	119
