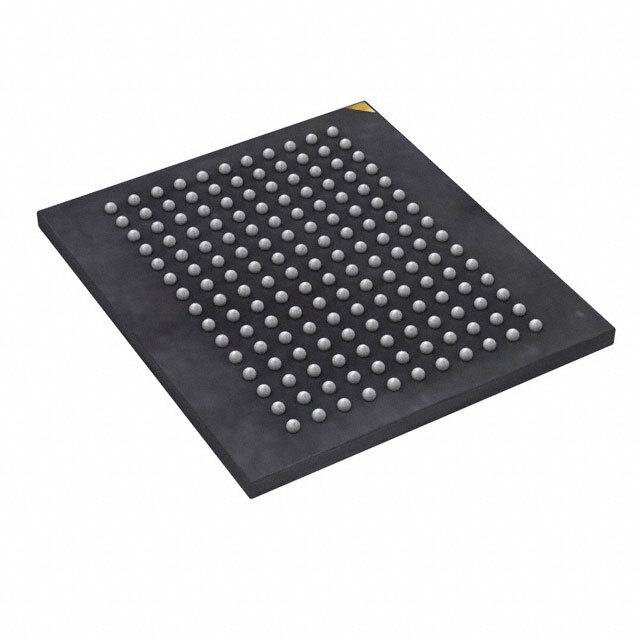

IS61DDB22M18A-250M3L

SKU: 54648

Manufacturer: Integrated Silicon Solution Inc

SRAM Chip Sync Single 1.8V 36M-bit 2M x 18 0.45ns 165-Pin FBGA

3980 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.b.2.a
Part Status	NRND
HTS	8542.32.00.41
Automotive	No
PPAP	No
Chip Density (bit)	36M
Number of Words	2M
Number of Bits/Word (bit)	18
Architecture	Pipelined
Data Rate Architecture	DDR
Address Bus Width (bit)	21
Number of Ports	1
Timing Type	Synchronous
Max. Access Time (ns)	0.45
Maximum Clock Rate (MHz)	250
Process Technology	CMOS
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.89
Operating Current (mA)	500
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Original Package	FBGA
Pin Count	165
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.94(Max)
Package Length	17
Package Width	15
PCB changed	165
