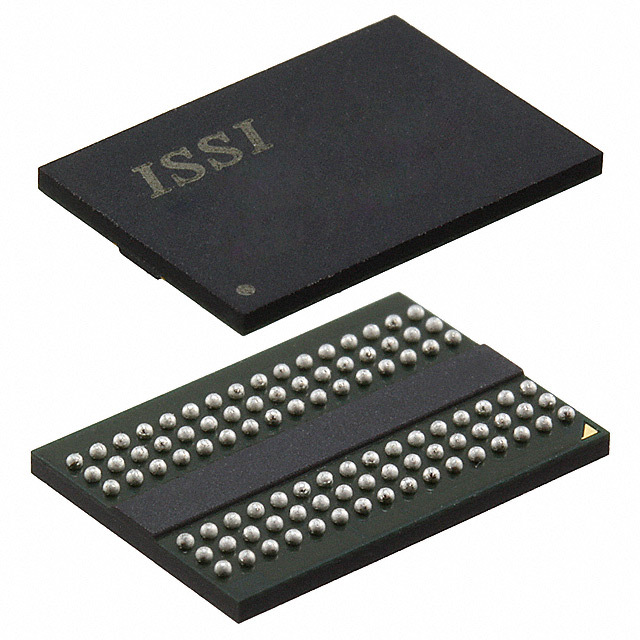

IS46TR16256A-125KBLA2

SKU: 146463

Manufacturer: Integrated Silicon Solution Inc

DRAM Chip DDR3 SDRAM 4Gbit 256Mx16 1.5V Automotive 96-Pin TW-BGA

2610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.32.00.24
Automotive	Yes
PPAP	Yes
DRAM Type	DDR3 SDRAM
Chip Density (bit)	4G
Organization	256Mx16
Number of Internal Banks	8
Number of Words per Bank	32M
Number of Bits/Word (bit)	16
Data Bus Width (bit)	16
Maximum Clock Rate (MHz)	1600
Maximum Access Time (ns)	0.225
Address Bus Width (bit)	18
Operating Supply Voltage-Min (V)	1.425
Typical Operating Supply Voltage (V)	1.5
Operating Supply Voltage-Max (V)	1.575
Operating Current (mA)	220
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Automotive
Number of I/O Lines (bit)	16
Original Package	TW-BGA
Pin Count	96
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	13
Package Width	9
PCB changed	96
