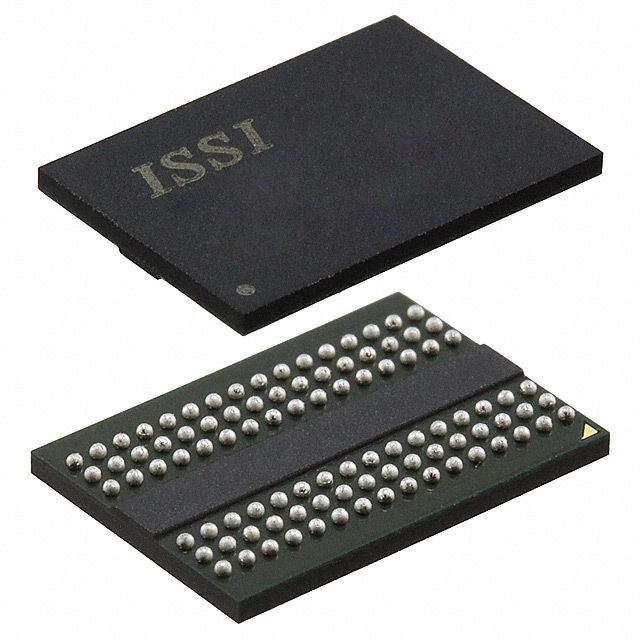

IS46TR16128C-15HBLA1

SKU: 132363

Manufacturer: Integrated Silicon Solution Inc

DRAM Chip DDR3 SDRAM 2Gbit 128Mx16 1.5V Automotive 96-Pin TW-BGA

2560 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
Automotive	Yes
PPAP	Yes
DRAM Type	DDR3 SDRAM
Chip Density (bit)	2G
Organization	128Mx16
Number of Internal Banks	8
Number of Words per Bank	16M
Number of Bits/Word (bit)	16
Data Bus Width (bit)	16
Maximum Clock Rate (MHz)	1333
Maximum Access Time (ns)	0.255
Address Bus Width (bit)	17
Interface Type	SSTL_1.5
Operating Supply Voltage-Min (V)	1.425
Typical Operating Supply Voltage (V)	1.5
Operating Supply Voltage-Max (V)	1.575
Operating Current (mA)	170
Operating Temperature-Min	-40
Operating Temperature-Max	95
Supplier Temperature Grade	Automotive
Number of I/O Lines (bit)	16
Original Package	TW-BGA
Pin Count	96
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	13
Package Width	9
