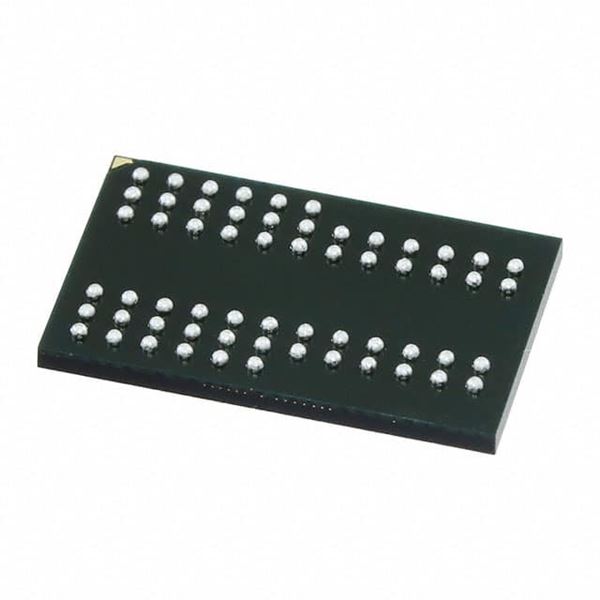

IS46R16160D-6BLA1-TR

SKU: 33238

Manufacturer: Integrated Silicon Solution Inc

DRAM Chip DDR SDRAM 256Mbit 16Mx16 2.5V Automotive 60-Pin TFBGA T/R

3110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.32.00.24
Automotive	Yes
PPAP	Yes
DRAM Type	DDR SDRAM
Chip Density (bit)	256M
Organization	16Mx16
Number of Internal Banks	4
Number of Words per Bank	4M
Number of Bits/Word (bit)	16
Data Bus Width (bit)	16
Maximum Clock Rate (MHz)	166
Maximum Access Time (ns)	0.7
Address Bus Width (bit)	15
Process Technology	CMOS
Interface Type	SSTL_2
Operating Supply Voltage-Min (V)	2.3
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	2.7
Operating Current (mA)	280
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Automotive
Number of I/O Lines (bit)	16
Packing Method	Tape and Reel
Original Package	TFBGA
Pin Count	60
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.8(Max)
Package Length	13
Package Width	8
PCB changed	60
