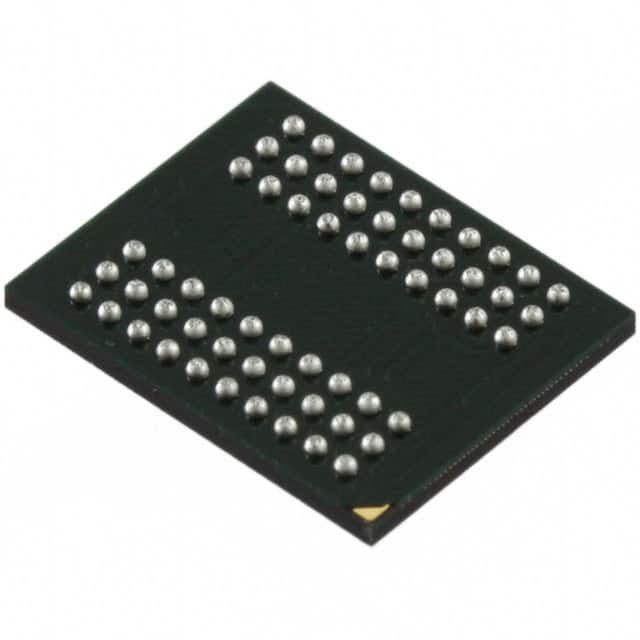

IS46LR16320C-6BLA2

SKU: 68695

Manufacturer: Integrated Silicon Solution Inc

DRAM Chip Mobile-DDR SDRAM 512Mbit 32Mx16 1.8V Automotive 60-Pin TFBGA

1000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.32.00.28
Automotive	Yes
PPAP	Yes
DRAM Type	Mobile-DDR SDRAM
Chip Density (bit)	512M
Organization	32Mx16
Number of Internal Banks	4
Number of Words per Bank	8M
Number of Bits/Word (bit)	16
Data Bus Width (bit)	16
Maximum Clock Rate (MHz)	166
Maximum Access Time (ns)	8
Address Bus Width (bit)	15
Interface Type	LVCMOS
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.95
Operating Current (mA)	110
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Automotive
Number of I/O Lines (bit)	16
Original Package	TFBGA
Pin Count	60
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.7(Max)
Package Length	10
Package Width	8
PCB changed	60
