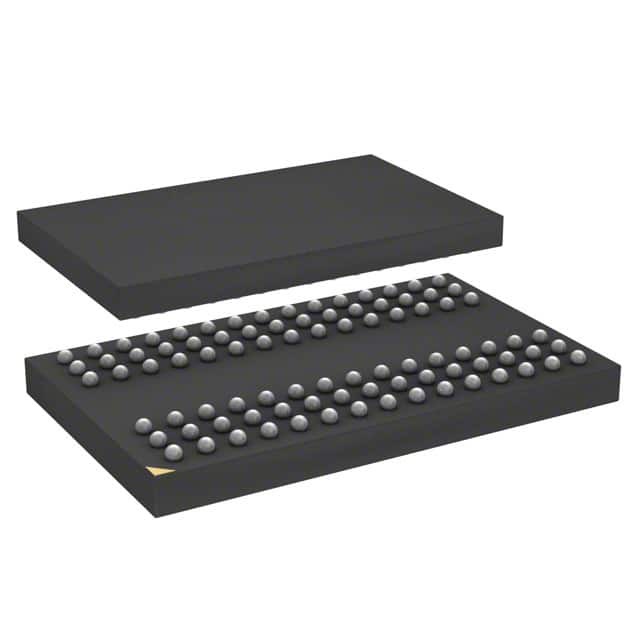

IS45S32400F-7BLA2

SKU: 16320

Manufacturer: Integrated Silicon Solution Inc

DRAM Chip SDRAM 128Mbit 4Mx32 3.3V Automotive 90-Pin TFBGA

3700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.32.00.02
Automotive	Yes
PPAP	Yes
DRAM Type	SDRAM
Chip Density (bit)	128M
Organization	4Mx32
Number of Internal Banks	4
Number of Words per Bank	1M
Number of Bits/Word (bit)	32
Data Bus Width (bit)	32
Maximum Clock Rate (MHz)	143
Maximum Access Time (ns)	5.4
Address Bus Width (bit)	14
Process Technology	CMOS
Interface Type	LVTTL
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Current (mA)	100
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Automotive
Number of I/O Lines (bit)	32
Original Package	TFBGA
Pin Count	90
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.8(Max)
Package Length	13
Package Width	8
PCB changed	90
