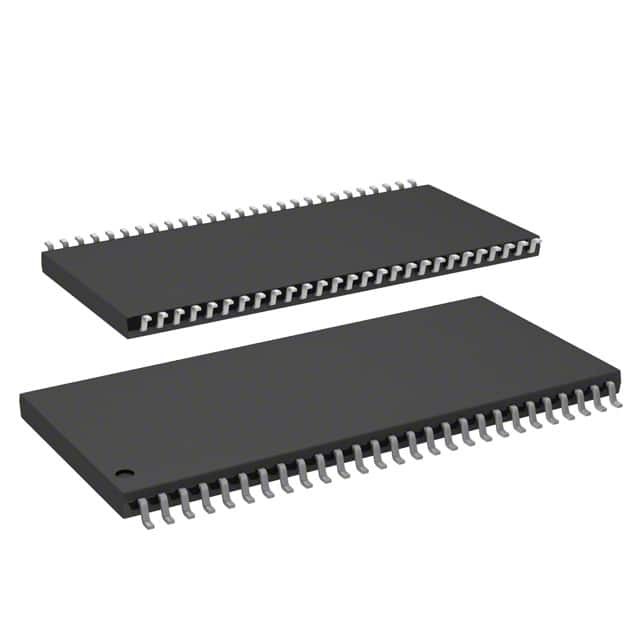

IS45S16400F-7TLA1

SKU: 19134

Manufacturer: Integrated Silicon Solution Inc

DRAM Chip SDRAM 64Mbit 4Mx16 3.3V Automotive 54-Pin TSOP-II

2210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Yes
PPAP	Yes
DRAM Type	SDRAM
Chip Density (bit)	64M
Organization	4Mx16
Number of Internal Banks	4
Number of Words per Bank	1M
Number of Bits/Word (bit)	16
Data Bus Width (bit)	16
Maximum Clock Rate (MHz)	143
Maximum Access Time (ns)	6
Address Bus Width (bit)	14
Process Technology	CMOS
Interface Type	LVTTL
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Current (mA)	110
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Automotive
Number of I/O Lines (bit)	16
Pin Count	54
Standard Package Method	SOP
Original Package	TSOP-II
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	22.42(Max)
Package Width	10.29(Max)
PCB changed	54
