IS43TR81024B-125KBLI

SKU: 153632

Manufacturer: Integrated Silicon Solution Inc

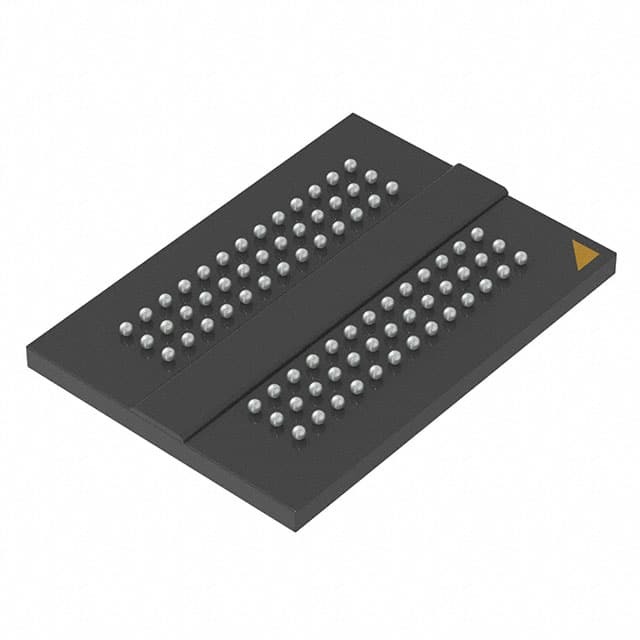

DRAM Chip DDR3 SDRAM 8Gbit 1Gx8 1.5V 78-Pin TW-BGA

3060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
HTS	8542.32.00.36
Automotive	No
PPAP	No
DRAM Type	DDR3 SDRAM
Chip Density (bit)	8G
Organization	1Gx8
Number of Internal Banks	8
Number of Words per Bank	128M
Number of Bits/Word (bit)	8
Data Bus Width (bit)	8
Maximum Clock Rate (MHz)	1600
Address Bus Width (bit)	19
Process Technology	CMOS
Operating Supply Voltage-Min (V)	1.425
Typical Operating Supply Voltage (V)	1.5
Operating Supply Voltage-Max (V)	1.575
Operating Current (mA)	350
Operating Temperature-Min	-40
Operating Temperature-Max	95
Supplier Temperature Grade	Industrial
Number of I/O Lines (bit)	8
Original Package	TW-BGA
Pin Count	78
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	14
Package Width	10
PCB changed	78
