IS43TR16512A-15HBLI-TR

SKU: 65879

Manufacturer: Integrated Silicon Solution Inc

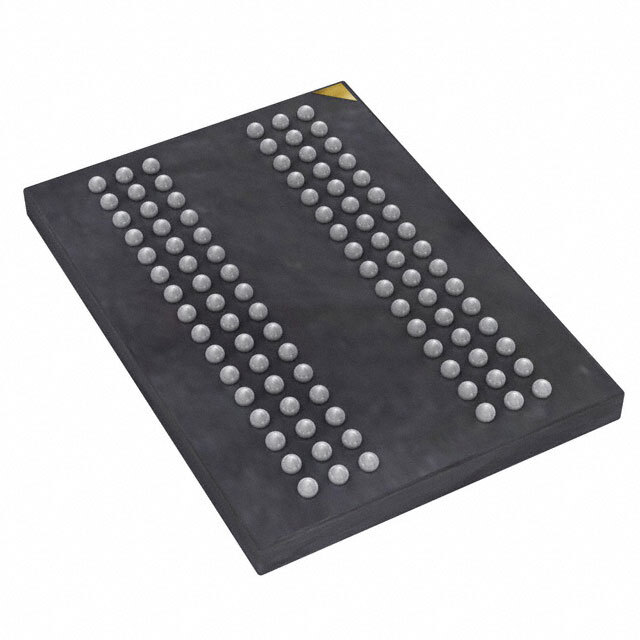

DRAM Chip DDR3 SDRAM 8Gbit 512Mx16 1.5V 96-Pin LFBGA

4050 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
DRAM Type	DDR3 SDRAM
Chip Density (bit)	8G
Organization	512Mx16
Number of Internal Banks	8
Number of Words per Bank	64M
Number of Bits/Word (bit)	16
Data Bus Width (bit)	16
Maximum Clock Rate (MHz)	1333
Address Bus Width (bit)	18
Process Technology	CMOS
Operating Supply Voltage-Min (V)	1.425
Typical Operating Supply Voltage (V)	1.5
Operating Supply Voltage-Max (V)	1.575
Operating Current (mA)	210
Operating Temperature-Min	0
Operating Temperature-Max	95
Supplier Temperature Grade	Commercial
Number of I/O Lines (bit)	16
Original Package	LFBGA
Pin Count	96
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	14
Package Width	10
PCB changed	96
