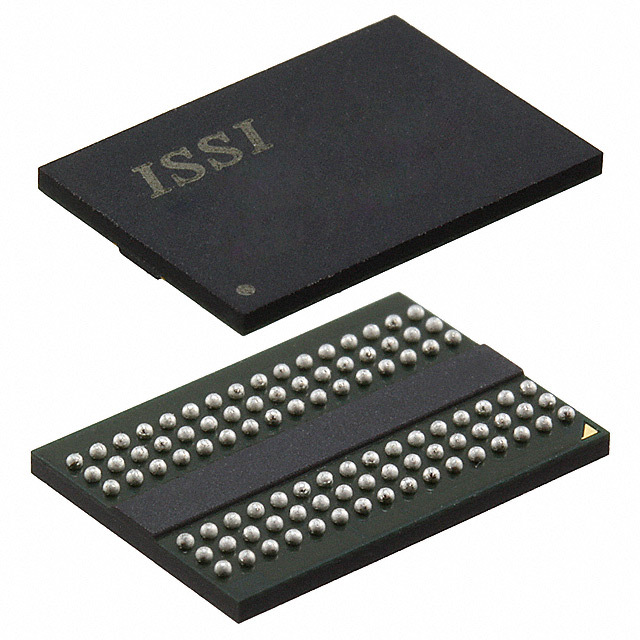

IS43TR16128DL-107MBLI

SKU: 143676

Manufacturer: Integrated Silicon Solution Inc

DRAM Chip DDR3L SDRAM 2Gbit 128Mx16 1.35V 96-Pin TW-BGA

3320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
HTS	8542.32.00.36
Automotive	No
PPAP	No
DRAM Type	DDR3L SDRAM
Chip Density (bit)	2G
Organization	128Mx16
Number of Internal Banks	8
Number of Words per Bank	16M
Number of Bits/Word (bit)	16
Data Bus Width (bit)	16
Maximum Clock Rate (MHz)	1866
Maximum Access Time (ns)	0.195
Address Bus Width (bit)	17
Operating Supply Voltage-Min (V)	1.283
Typical Operating Supply Voltage (V)	1.35
Operating Supply Voltage-Max (V)	1.45
Operating Current (mA)	216
Operating Temperature-Min	-40
Operating Temperature-Max	95
Supplier Temperature Grade	Industrial
Number of I/O Lines (bit)	16
Original Package	TW-BGA
Pin Count	96
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	13
Package Width	9
