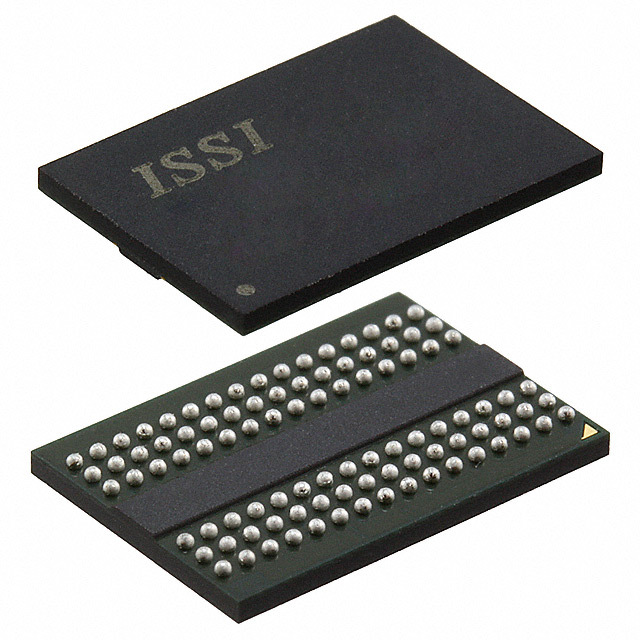

IS43TR16128C-107MBL

SKU: 143675

Manufacturer: Integrated Silicon Solution Inc

DRAM Chip DDR3 SDRAM 2Gbit 128Mx16 1.5V 96-Pin TW-BGA

1610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.32.00.36
Automotive	No
PPAP	No
DRAM Type	DDR3 SDRAM
Chip Density (bit)	2G
Organization	128Mx16
Number of Internal Banks	8
Number of Words per Bank	16M
Number of Bits/Word (bit)	16
Data Bus Width (bit)	16
Maximum Clock Rate (MHz)	1866
Maximum Access Time (ns)	0.195
Address Bus Width (bit)	17
Interface Type	SSTL_1.5
Operating Supply Voltage-Min (V)	1.425
Typical Operating Supply Voltage (V)	1.5
Operating Supply Voltage-Max (V)	1.575
Operating Current (mA)	240
Operating Temperature-Min	0
Operating Temperature-Max	95
Supplier Temperature Grade	Commercial
Number of I/O Lines (bit)	16
Original Package	TW-BGA
Pin Count	96
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	13
Package Width	9
