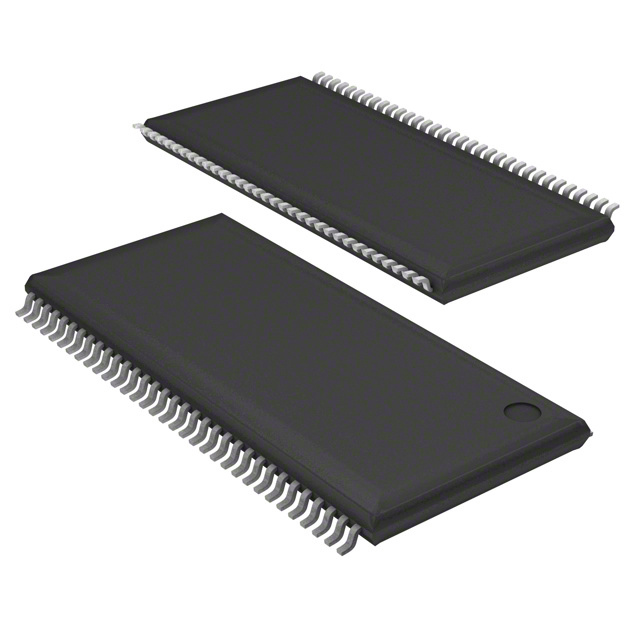

IS43R86400D-6TLI-TR

SKU: 153630

Manufacturer: Integrated Silicon Solution Inc

DRAM Chip DDR SDRAM 512Mbit 64Mx8 2.5V 66-Pin TSOP-II T/R

3260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.32.00.28
Automotive	No
PPAP	No
DRAM Type	DDR SDRAM
Chip Density (bit)	512M
Organization	64Mx8
Number of Internal Banks	4
Number of Words per Bank	16M
Number of Bits/Word (bit)	8
Data Bus Width (bit)	8
Maximum Clock Rate (MHz)	166
Maximum Access Time (ns)	0.7
Address Bus Width (bit)	15
Process Technology	CMOS
Interface Type	SSTL_2
Operating Supply Voltage-Min (V)	2.3
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	2.7
Operating Current (mA)	370
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Number of I/O Lines (bit)	8
Packing Method	Tape and Reel
Original Package	TSOP-II
Pin Count	66
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	22.42(Max)
Package Width	10.29(Max)
PCB changed	66
