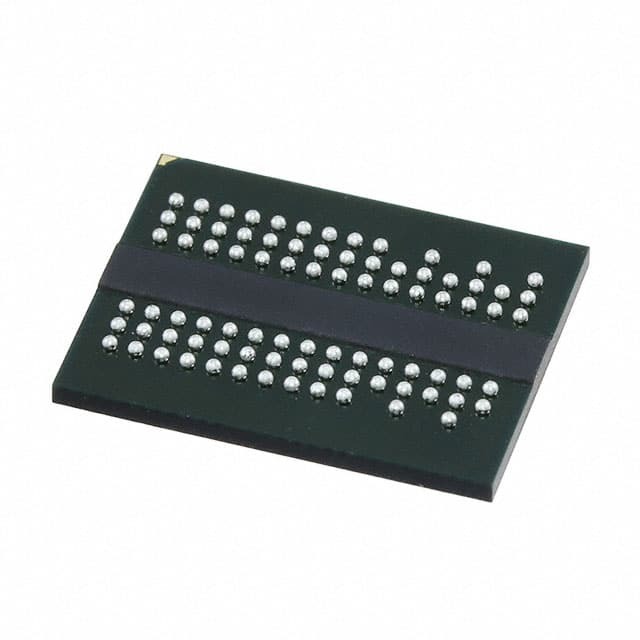

IS43DR16128B-3DBL

SKU: 51820

Manufacturer: Integrated Silicon Solution Inc

DRAM Chip DDR2 SDRAM 2Gbit 128Mx16 1.8V 84-Pin TW-BGA

1760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	LTB
HTS	8542.32.00.36
Automotive	No
PPAP	No
DRAM Type	DDR2 SDRAM
Chip Density (bit)	2G
Organization	128Mx16
Number of Internal Banks	8
Number of Words per Bank	16M
Number of Bits/Word (bit)	16
Data Bus Width (bit)	16
Maximum Clock Rate (MHz)	667
Maximum Access Time (ns)	0.45
Address Bus Width (bit)	17
Interface Type	SSTL_18
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.9
Operating Current (mA)	435
Operating Temperature-Min	0
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Number of I/O Lines (bit)	16
Original Package	TW-BGA
Pin Count	84
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	13.5
Package Width	10.5
