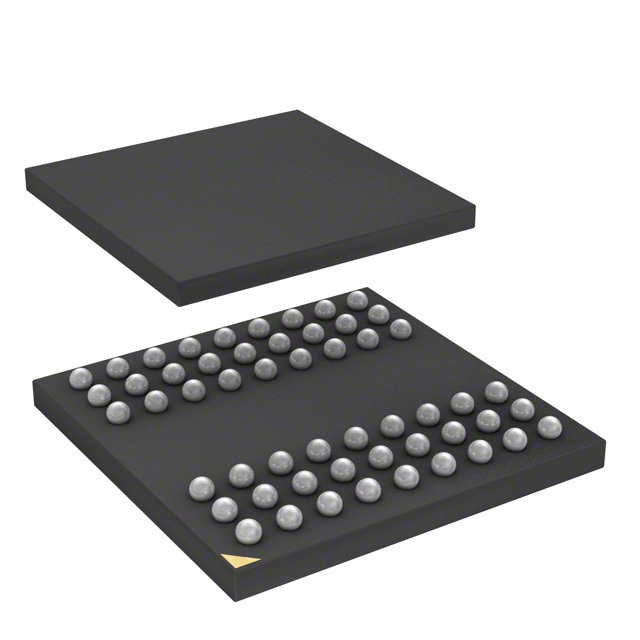

IS42SM16200D-75BLI

SKU: 108134

Manufacturer: Integrated Silicon Solution Inc

DRAM Chip SDRAM 32Mbit 2Mx16 1.8V 54-Pin TFBGA

1060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.32.00.02
Automotive	No
PPAP	No
DRAM Type	SDRAM
Chip Density (bit)	32M
Organization	2Mx16
Number of Internal Banks	2
Number of Words per Bank	1M
Number of Bits/Word (bit)	16
Data Bus Width (bit)	16
Maximum Clock Rate (MHz)	133
Maximum Access Time (ns)	7.5
Address Bus Width (bit)	12
Interface Type	LVCMOS
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.95
Operating Current (mA)	55
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Number of I/O Lines (bit)	16
Original Package	TFBGA
Pin Count	54
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.8(Max)
Package Length	8
Package Width	8
PCB changed	54
