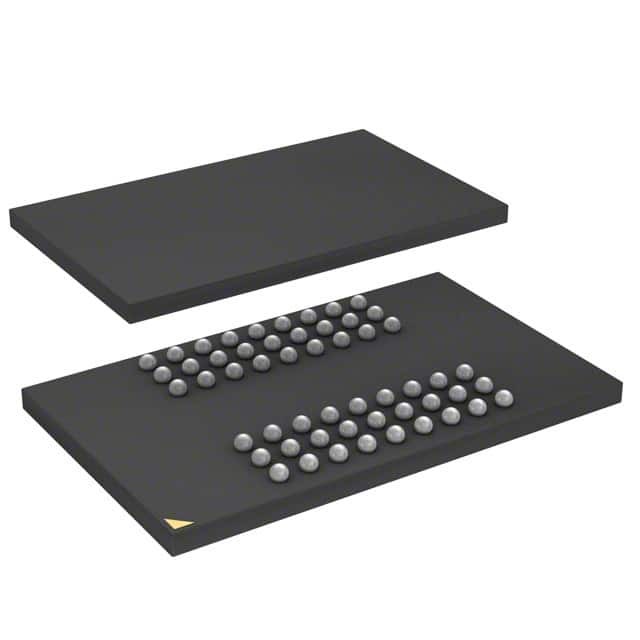

IS42S16320B-7BL-TR

SKU: 16311

Manufacturer: Integrated Silicon Solution Inc

DRAM Chip SDRAM 512Mbit 32Mx16 3.3V 54-Pin WBGA T/R

4610 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
DRAM Type	SDRAM
Chip Density (bit)	512M
Organization	32Mx16
Number of Internal Banks	4
Number of Words per Bank	8M
Number of Bits/Word (bit)	16
Data Bus Width (bit)	16
Maximum Clock Rate (MHz)	143
Maximum Access Time (ns)	6
Address Bus Width (bit)	15
Process Technology	CMOS
Interface Type	LVTTL
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Current (mA)	150
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Number of I/O Lines (bit)	16
Packing Method	Tape and Reel
Original Package	WBGA
Pin Count	54
Terminal Form	Surface Mount
Package Height	0.8(Max)
Package Length	13
Package Width	11
PCB changed	54
