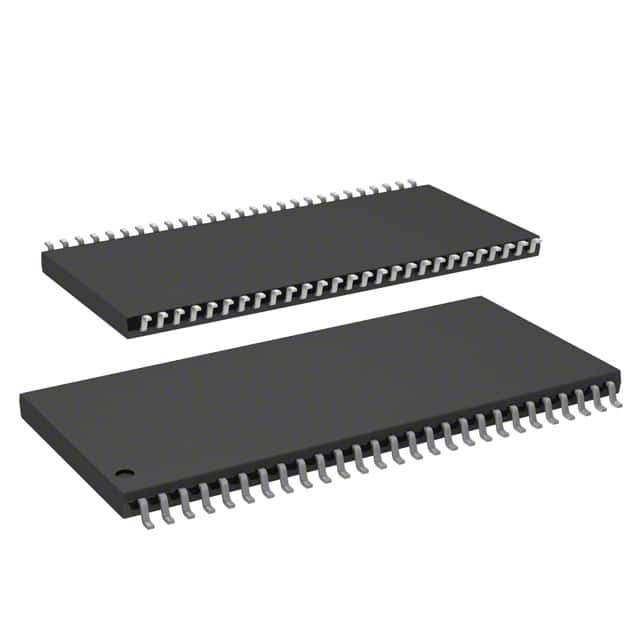

IS42S16160G-6TL

SKU: 132354

Manufacturer: Integrated Silicon Solution Inc

DRAM Chip SDRAM 256Mbit 16Mx16 3.3V 54-Pin TSOP-II

1200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.32.00.24
Automotive	No
PPAP	No
DRAM Type	SDRAM
Chip Density (bit)	256M
Organization	16Mx16
Number of Internal Banks	4
Number of Words per Bank	4M
Number of Bits/Word (bit)	16
Data Bus Width (bit)	16
Maximum Clock Rate (MHz)	166
Maximum Access Time (ns)	5.4
Address Bus Width (bit)	15
Process Technology	CMOS
Interface Type	LVTTL
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Current (mA)	160
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Number of I/O Lines (bit)	16
Original Package	TSOP-II
Pin Count	54
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	22.42(Max)
Package Width	10.29(Max)
