IS42S16160B-7BL

SKU: 108128

Manufacturer: Integrated Silicon Solution Inc

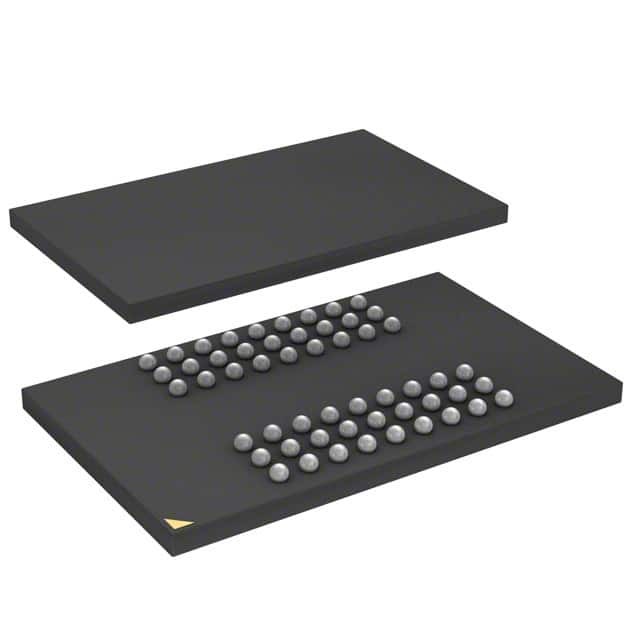

DRAM Chip SDRAM 256Mbit 16Mx16 3.3V 54-Pin LFBGA

1170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
DRAM Type	SDRAM
Chip Density (bit)	256M
Organization	16Mx16
Number of Internal Banks	4
Number of Words per Bank	4M
Number of Bits/Word (bit)	16
Data Bus Width (bit)	16
Maximum Clock Rate (MHz)	143
Maximum Access Time (ns)	6.5
Address Bus Width (bit)	15
Interface Type	LVTTL
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Current (mA)	130
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Number of I/O Lines (bit)	16
Original Package	LFBGA
Pin Count	54
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	13
Package Width	8
PCB changed	54
