    IS41LV16105D-50TLI

    SKU: 44669

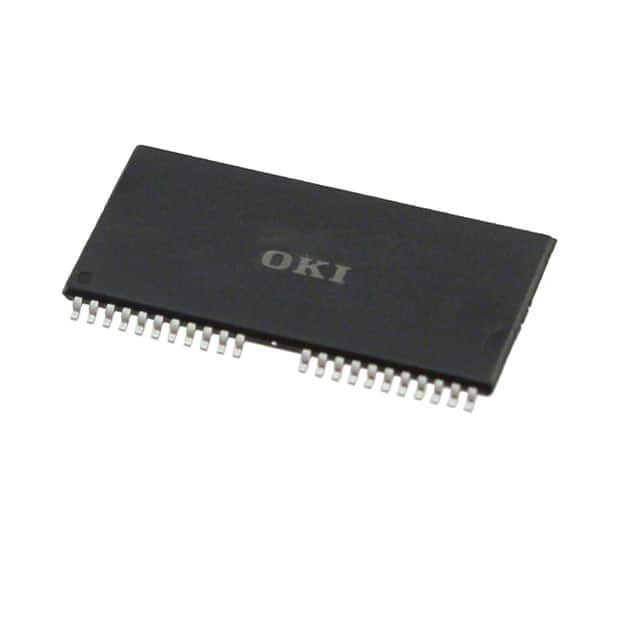

    DRAM Chip EDO 16Mbit 1Mx16 3.3V 44-Pin TSOP-II
    1030 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    HTS 8542.32.00.02
    Automotive No
    PPAP No
    DRAM Type EDO
    Chip Density (bit) 16M
    Organization 1Mx16
    Number of Bits/Word (bit) 16
    Data Bus Width (bit) 16
    Maximum Access Time (ns) 50
    Address Bus Width (bit) 10
    Interface Type TTL
    Operating Supply Voltage-Min (V) 3
    Typical Operating Supply Voltage (V) 3.3
    Operating Supply Voltage-Max (V) 3.6
    Operating Current (mA) 90
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Supplier Temperature Grade Industrial
    Number of I/O Lines (bit) 16
    Original Package TSOP-II
    Pin Count 44
    Terminal Form Surface Mount
    Package Height 1
    Package Length 20.95
    Package Width 10.16
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    HTS 8542.32.00.02
    Automotive No
    PPAP No
    DRAM Type EDO
    Chip Density (bit) 16M
    Organization 1Mx16
    Number of Bits/Word (bit) 16
    Data Bus Width (bit) 16
    Maximum Access Time (ns) 50
    Address Bus Width (bit) 10
    Interface Type TTL
    Operating Supply Voltage-Min (V) 3
    Typical Operating Supply Voltage (V) 3.3
    Operating Supply Voltage-Max (V) 3.6
    Operating Current (mA) 90
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Supplier Temperature Grade Industrial
    Number of I/O Lines (bit) 16
    Original Package TSOP-II
    Pin Count 44
    Terminal Form Surface Mount
    Package Height 1
    Package Length 20.95
    Package Width 10.16
