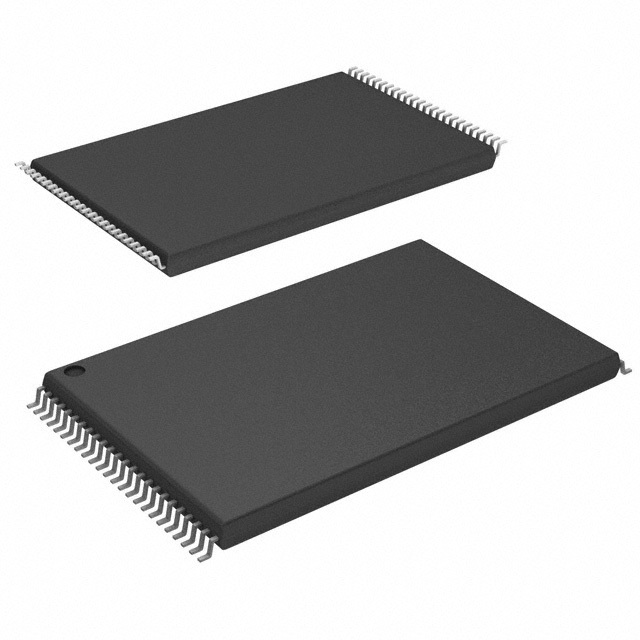

IS34MW04G084-TLI

SKU: 122405

Manufacturer: Integrated Silicon Solution Inc

SLC NAND Flash Parallel 1.8V 4G-bit 512M x 8 48-Pin TSOP-I

1390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.b.1.a
Part Status	Active
HTS	8542.32.00.71
Automotive	No
PPAP	No
Cell Type	SLC NAND
Chip Density (bit)	4G
Boot Block	No
Address Bus Width (bit)	30
Page Size	2Kbyte
Number of Bits/Word (bit)	8
Number of Words	512M
Programmability	Yes
Timing Type	Asynchronous
Maximum Erase Time (s)	0.01/Chip
Maximum Programming Time (ms)	0.75
Interface Type	Parallel
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.95
Operating Current (mA)	20
Page Read Current (mA)	20
Program Current (mA)	20
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Command Compatible	Yes
ECC Support	Yes
Support of Page Mode	Yes
Minimum Endurance (Cycles)	100000
Original Package	TSOP-I
Pin Count	48
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	12
Package Width	18.4
