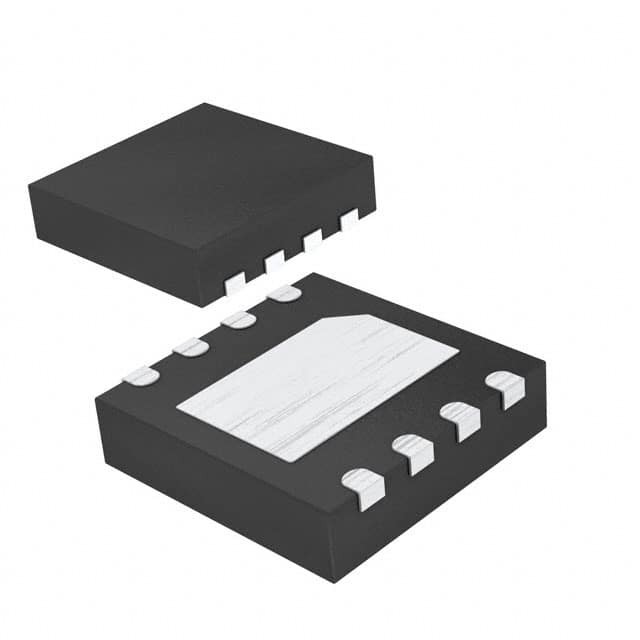

IS25LQ032B-JKLE

SKU: 125190

Manufacturer: Integrated Silicon Solution Inc

NOR Flash Serial (SPI, Dual SPI, Quad SPI) 2.5V/3V/3.3V 32M-bit 4M x 8 8ns 8-Pin WSON EP

2600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.32.00.71
Automotive	No
PPAP	No
Cell Type	NOR
Chip Density (bit)	32M
Architecture	Sectored
Boot Block	No
Block Organization	Symmetrical
Address Bus Width (bit)	22
Sector Size	4Kbyte x 1024
Page Size	256byte
Number of Bits/Word (bit)	8
Number of Words	4M
Programmability	Yes
Timing Type	Synchronous
Max. Access Time (ns)	8
Maximum Erase Time (s)	30/Chip
Maximum Programming Time (ms)	1/Page
Interface Type	Serial (SPI, Dual SPI, Quad SPI)
Operating Supply Voltage-Min (V)	2.3
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.6
Programming Voltage (V)	2.3 to 3.6
Operating Current (mA)	15
Program Current (mA)	23
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Extended
Command Compatible	Yes
ECC Support	No
Support of Page Mode	Yes
Minimum Endurance (Cycles)	100000
Original Package	WSON EP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.73
Package Length	5
Package Width	6
