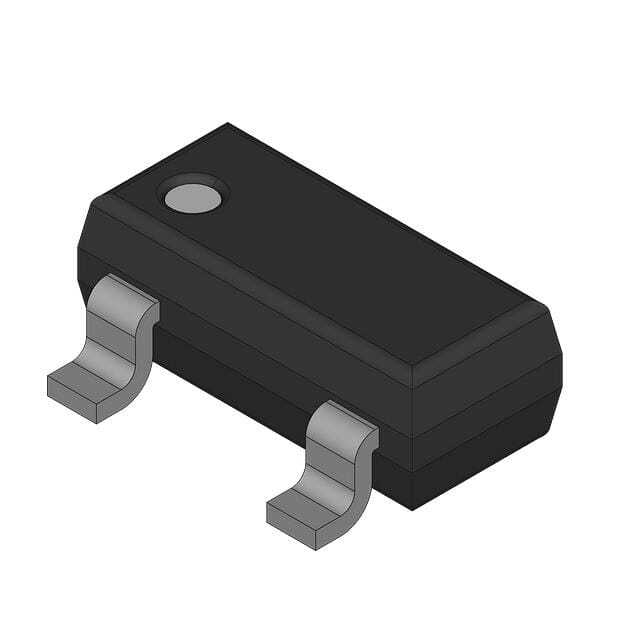

TLE4946-2K

SKU: 130188

Manufacturer: Infineon Technologies AG

Hall Effect Sensor 20mA Latch 3.3V/5V/9V/12V/15V/18V Automotive 3-Pin SC-59 T/R

82740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Unknown
PPAP	Unknown
Magnetic Type	Latch
Module/IC Classification	IC
Minimum Magnetic Sensor Release Point (Gs)	-35
Typical Magnetic Sensor Hysteresis (Gs)	40
Maximum Magnetic Sensor Operating Point (Gs)	35
Typical Output Fall Time (us)	0.02
Maximum Output Current (mA)	20
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	9
Operating Supply Voltage-Max (V)	24
Maximum Supply Current (uA)	6000
Operating Temperature-Min	-40
Operating Temperature-Max	150
Packing Method	Tape and Reel
Pin Count	3
Standard Package Method	SOT-23
Original Package	SC-59
Terminal Form	Surface Mount
Package Height	1.1
Package Length	3
Package Width	1.6
PCB changed	3
