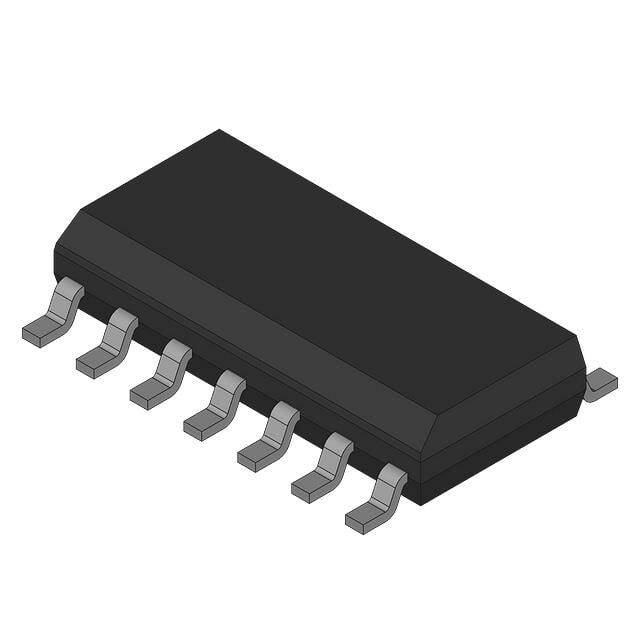

    TLE4278G

    SKU: 85765
    Manufacturer: Infineon Technologies AG
    LDO Regulator Pos 5V 0.2A Automotive 14-Pin DSO
    192490 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Obsolete
    Automotive Yes
    PPAP Unknown
    Type LDO
    Number of Outputs 1
    Polarity Positive
    Accuracy (%) ±2
    Output Type Fixed
    Output Voltage (V) 5
    Maximum Output Current (A) 0.2
    Minimum Input Voltage (V) 5.5
    Maximum Input Voltage (V) 45
    Maximum Dropout Voltage @ Current (V) 0.5@150mA
    Line Regulation 20mV
    Load Regulation -5mV(Typ)
    Junction to Ambient 80K/W
    Special Features Short Circuit Protection
    Operating Temperature-Min -40
    Operating Temperature-Max 150
    Original Package DSO
    Pin Count 14
    Standard Package Method SOP
    Terminal Form Surface Mount
    Package Height 1.5
    Package Length 8.69
    Package Width 4
    PCB changed 14
