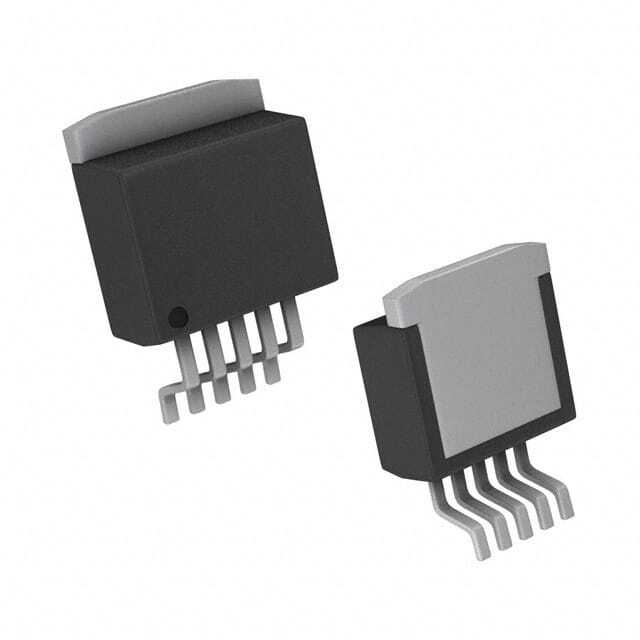

TLE42754G

SKU: 50594

Manufacturer: Infineon Technologies AG

LDO Regulator Pos 5V 0.45A Automotive 6-Pin(5+Tab) TO-263 T/R

13960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Yes
PPAP	Unknown
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	0.45
Minimum Input Voltage (V)	5.5
Maximum Input Voltage (V)	42
Maximum Dropout Voltage @ Current (V)	0.5@300mA
Line Regulation	15mV
Load Regulation	-15mV(Typ)
Junction to Ambient	70K/W(Typ)
Junction to Case	3.7K/W(Typ)
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	150
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	TO-263
Pin Count	6
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.4
Package Length	10
Package Width	9.25
PCB changed	5
Tab	Tab
