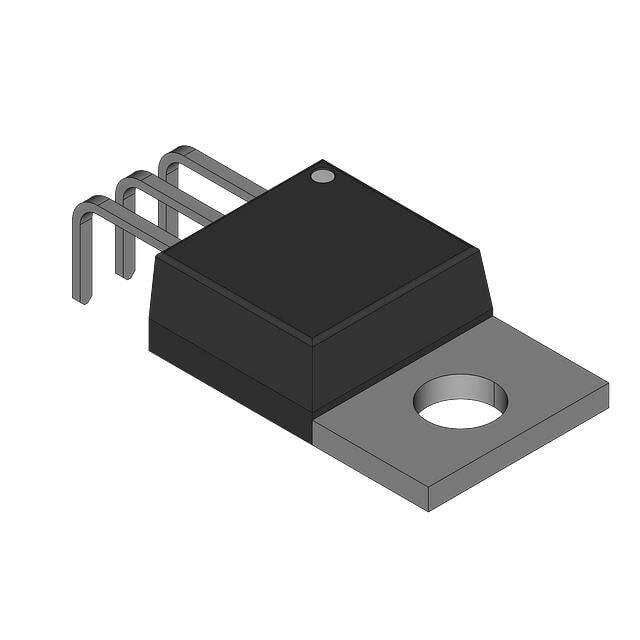

SPP24N60CFD

SKU: 43107

Manufacturer: Infineon Technologies AG

Trans MOSFET N-CH 600V 21.7A Automotive 3-Pin(3+Tab) TO-220 Tube

330 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Process Technology	CoolMOS
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	600
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	21.7
Maximum Drain Source Resistance (mOhm)	185@10V
Typical Gate Charge @ Vgs (nC)	110@10V
Typical Gate Charge @ 10V (nC)	110
Typical Input Capacitance @ Vds (pF)	3160@25V
Maximum Power Dissipation (mW)	240000
Typical Fall Time (ns)	9
Typical Rise Time (ns)	24
Typical Turn-Off Delay Time (ns)	100
Typical Turn-On Delay Time (ns)	50
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-220
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.25
Package Length	10
Package Width	4.4
PCB changed	3
Tab	Tab
