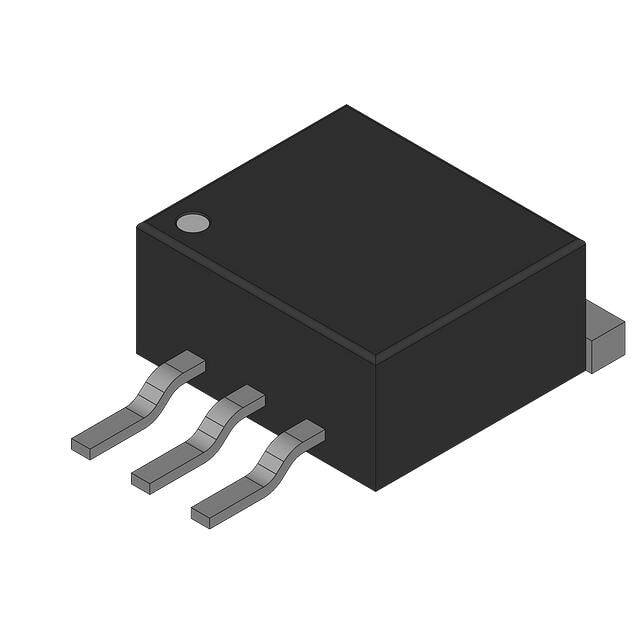

SPD03N60C3

SKU: 28881

Manufacturer: Infineon Technologies AG

Trans MOSFET N-CH 600V 3.2A Automotive 3-Pin(2+Tab) DPAK T/R

6720 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	Unknown
PPAP	Unknown
Product Category	Power MOSFET
Configuration	Single
Process Technology	CoolMOS
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	600
Maximum Gate Source Voltage (V)	±20
Maximum Gate Threshold Voltage (V)	3.9
Operating Junction Temperature (°C)	-55 to 150
Maximum Continuous Drain Current (A)	3.2
Maximum Drain Source Resistance (mOhm)	1400@10V
Typical Gate Charge @ Vgs (nC)	13@10V
Typical Gate Charge @ 10V (nC)	13
Typical Input Capacitance @ Vds (pF)	400@25V
Maximum Power Dissipation (mW)	38000
Typical Fall Time (ns)	12
Typical Rise Time (ns)	3
Typical Turn-Off Delay Time (ns)	64
Typical Turn-On Delay Time (ns)	7
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Maximum Positive Gate Source Voltage (V)	20
Maximum Diode Forward Voltage (V)	1.2
Pin Count	3
Standard Package Method	TO-252
Original Package	DPAK
Terminal Form	Surface Mount
Package Height	2.3
Package Length	6.5
Package Width	6.22
PCB changed	2
