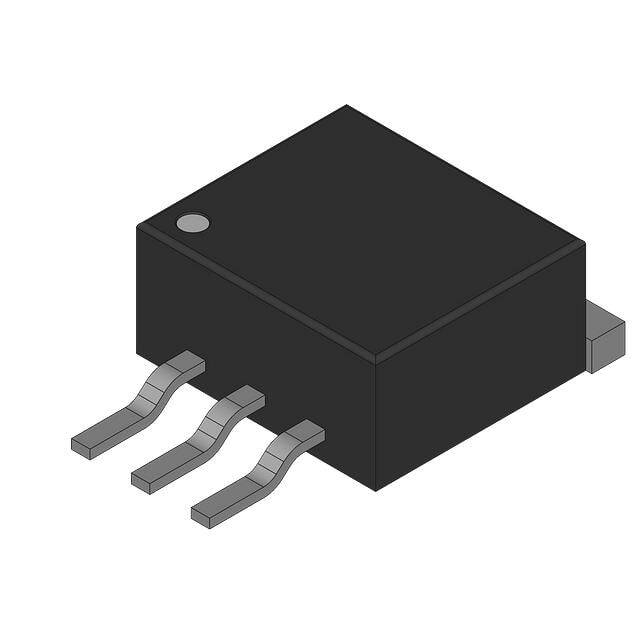

    SPD02N50C3

    SKU: 92442
    Manufacturer: Infineon Technologies AG
    Trans MOSFET N-CH 500V 1.8A 3-Pin(2+Tab) DPAK T/R
    17500 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant with Exemption
    ECCN (US) EAR99
    Part Status Obsolete
    SVHC Yes
    SVHC Exceeds Threshold Yes
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Process Technology CoolMOS
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 500
    Maximum Gate Source Voltage (V) ±20
    Operating Junction Temperature (°C) -55 to 150
    Maximum Continuous Drain Current (A) 1.8
    Maximum Drain Source Resistance (mOhm) 3000@10V
    Typical Gate Charge @ Vgs (nC) 9@10V
    Typical Gate Charge @ 10V (nC) 9
    Typical Input Capacitance @ Vds (pF) 190@25V
    Maximum Power Dissipation (mW) 25000
    Typical Fall Time (ns) 15
    Typical Rise Time (ns) 5
    Typical Turn-Off Delay Time (ns) 70
    Typical Turn-On Delay Time (ns) 10
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tape and Reel
    Pin Count 3
    Standard Package Method TO-252
    Original Package DPAK
    Terminal Form Surface Mount
    Package Height 2.3
    Package Length 6.5
    Package Width 6.22
    PCB changed 2
