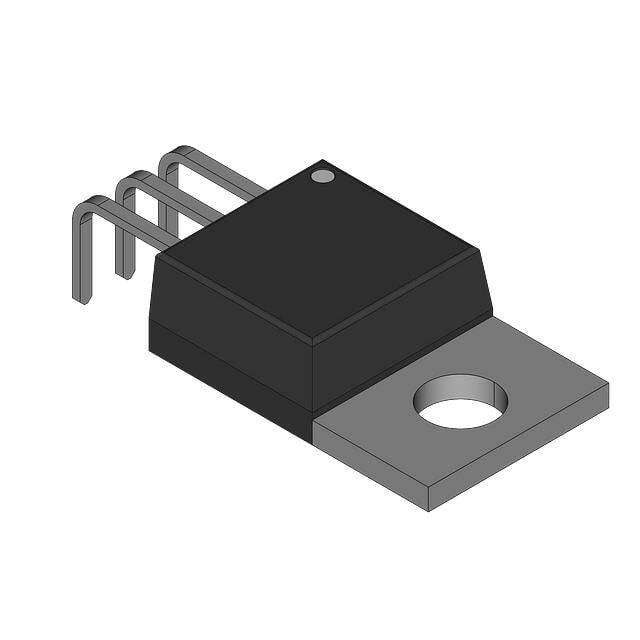

SPA08N80C3

SKU: 142154

Manufacturer: Infineon Technologies AG

Trans MOSFET N-CH 800V 8A 3-Pin(3+Tab) TO-220FP Tube

8160 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Product Category	Power MOSFET
Process Technology	CoolMOS
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	800
Maximum Gate Source Voltage (V)	±20
Maximum Continuous Drain Current (A)	8
Maximum Drain Source Resistance (mOhm)	650@10V
Typical Gate Charge @ Vgs (nC)	40@10V
Typical Gate Charge @ 10V (nC)	40
Typical Input Capacitance @ Vds (pF)	1100@25V
Maximum Power Dissipation (mW)	40000
Typical Fall Time (ns)	7
Typical Rise Time (ns)	15
Typical Turn-Off Delay Time (ns)	65
Typical Turn-On Delay Time (ns)	25
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Pin Count	3
Standard Package Method	TO-220
Original Package	TO-220FP
Terminal Form	Through Hole
Package Height	15.99
Package Length	10.5
Package Width	4.7
PCB changed	3
Tab	Tab
