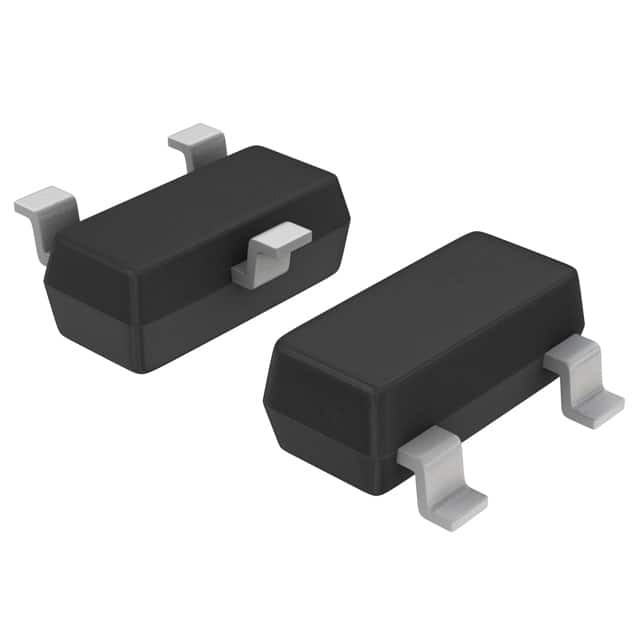

IRLML6402TRPBF

SKU: 40333

Manufacturer: Infineon Technologies AG

Trans MOSFET P-CH Si 20V 3.7A 3-Pin SOT-23 T/R

Download sample

Request Free Samples

442530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single
Process Technology	HEXFET
Channel Mode	Enhancement
Channel Type	P
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±12
Maximum Gate Threshold Voltage (V)	1.2
Operating Junction Temperature (°C)	-55 to 150
Maximum Continuous Drain Current (A)	3.7
Maximum Gate Source Leakage Current (nA)	100
Maximum IDSS (uA)	1
Maximum Drain Source Resistance (mOhm)	65@4.5V
Typical Gate Charge @ Vgs (nC)	8@5V
Typical Gate to Drain Charge (nC)	2.8
Typical Gate to Source Charge (nC)	1.2
Typical Reverse Recovery Charge (nC)	11
Typical Input Capacitance @ Vds (pF)	633@10V
Typical Reverse Transfer Capacitance @ Vds (pF)	110@10V
Minimum Gate Threshold Voltage (V)	0.4
Typical Output Capacitance (pF)	145
Maximum Power Dissipation (mW)	1300
Typical Fall Time (ns)	381
Typical Rise Time (ns)	48
Typical Turn-Off Delay Time (ns)	588
Typical Turn-On Delay Time (ns)	350
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Maximum Pulsed Drain Current @ TC=25°C (A)	22
Maximum Junction Ambient Thermal Resistance on PCB (°C/W)	100
Typical Gate Plateau Voltage (V)	1.9
Typical Reverse Recovery Time (ns)	29
Maximum Diode Forward Voltage (V)	1.2
Typical Gate Threshold Voltage (V)	0.55
Maximum Positive Gate Source Voltage (V)	12
Pin Count	3
Standard Package Method	SOT
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.02(Max)
Package Length	3.04(Max)
Package Width	1.4(Max)
PCB changed	3
