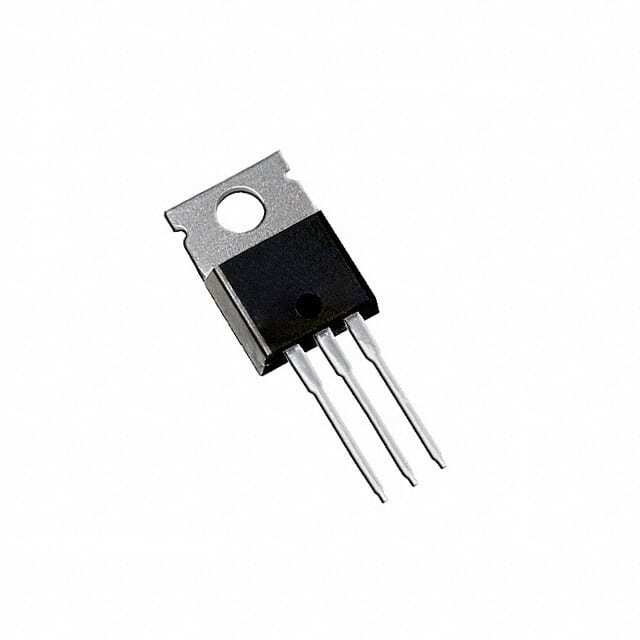

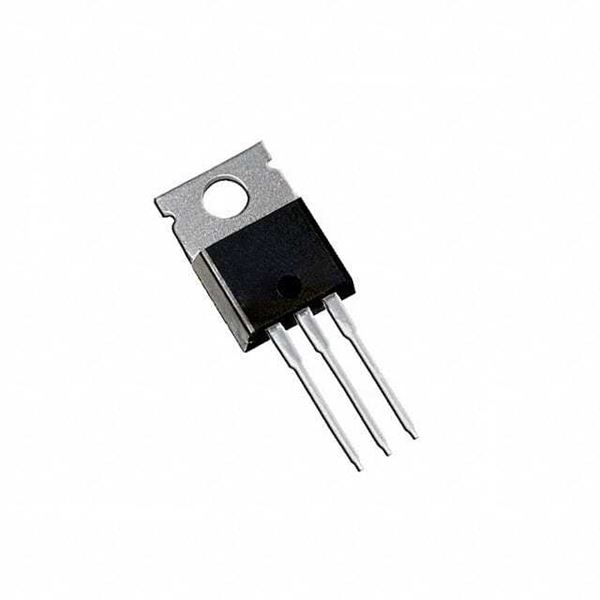

IRL3502PBF

SKU: 132339

Manufacturer: Infineon Technologies AG

Trans MOSFET N-CH 20V 110A 3-Pin(3+Tab) TO-220AB

16420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Product Category	Power MOSFET
Process Technology	HEXFET
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	20
Maximum Gate Source Voltage (V)	±10
Maximum Continuous Drain Current (A)	110
Maximum Drain Source Resistance (mOhm)	7@7V
Typical Gate Charge @ Vgs (nC)	110(Max)@4.5V
Typical Input Capacitance @ Vds (pF)	4700@15V
Maximum Power Dissipation (mW)	140000
Typical Fall Time (ns)	130
Typical Rise Time (ns)	140
Typical Turn-Off Delay Time (ns)	96
Typical Turn-On Delay Time (ns)	10
Operating Temperature-Min	-55
Operating Temperature-Max	150
Pin Count	3
Standard Package Method	TO-220
Original Package	TO-220AB
Terminal Form	Through Hole
Package Height	9.02(Max)
Package Length	10.67(Max)
Package Width	4.83(Max)
PCB changed	3
Tab	Tab
